// Config for SDK 24+
repositories {
mavenCentral()
}

复制代码

dependencies {
implementation 'com.journeyapps:zxing-android-embedded:4.3.0'
implementation 'com.blankj:utilcodex:1.31.1'//工具库
}

复制代码

<uses-feature
android:name="android.hardware.camera"
android:required="false" />
<uses-permission android:name="android.permission.CAMERA" />
<uses-permission android:name="android.permission.FLASHLIGHT" />

复制代码

fun gotoScan(){
PermissionUtils.permission(Manifest.permission.CAMERA)
.callback(object : PermissionUtils.SimpleCallback {
override fun onGranted() {
//相机权限已开启
LogUtils.i("相机权限已开启")
}
override fun onDenied() {
LogUtils.e("没有相机权限，无法扫码，请在设置中开启")
ToastUtils.showShort("没有相机权限，无法扫码，请在设置中开启")
}
}).request()
}

复制代码

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/main"
android:layout_width="match_parent"
android:layout_height="match_parent">
<com.journeyapps.barcodescanner.DecoratedBarcodeView
android:id="@+id/barcodeScanner"
android:layout_width="match_parent"
android:layout_height="match_parent"
app:zxing_framing_rect_height="200dp"
app:zxing_framing_rect_width="200dp" />
</androidx.constraintlayout.widget.ConstraintLayout>

复制代码

class ScanQRActivity: BaseVBActivity<ActivityScanQrBinding>() {
private lateinit var beepManager:BeepManager
override fun initView() {
//设置屏幕常亮
window.addFlags(WindowManager.LayoutParams.FLAG_KEEP_SCREEN_ON)
//初始化扫码
val formats: Collection<BarcodeFormat> =
listOf(BarcodeFormat.QR_CODE, BarcodeFormat.CODE_39)
mViewBinding.barcodeScanner.barcodeView.setDecoderFactory(DefaultDecoderFactory(formats))
mViewBinding.barcodeScanner.initializeFromIntent(intent)
mViewBinding.barcodeScanner.decodeContinuous(callback)
beepManager = BeepManager(this)
}
private val callback: BarcodeCallback = object : BarcodeCallback {
override fun barcodeResult(result: BarcodeResult) {
if (result.text == null ) {
// Prevent duplicate scans
return
}
mViewBinding.barcodeScanner.setStatusText(result.text)
beepManager.playBeepSoundAndVibrate()
}
override fun possibleResultPoints(resultPoints: List<ResultPoint>) {
}
}
override fun onResume() {
super.onResume()
mViewBinding.barcodeScanner.resume()
}
override fun onPause() {
super.onPause()
mViewBinding.barcodeScanner.pause()
}
override fun onKeyDown(keyCode: Int, event: KeyEvent?): Boolean {
return mViewBinding.barcodeScanner.onKeyDown(keyCode, event) || super.onKeyDown(keyCode, event)
}
}

复制代码

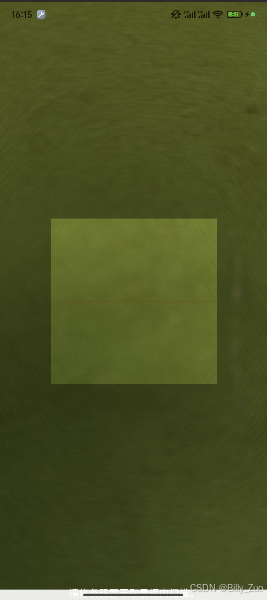

上面有提到DecoratedBarcodeView，主要的三个view：BarcodeView、ViewfinderView、TextView。这里对包括扫描框的ViewfinderView进行自定义。ViewfinderView的默认效果从演示效果图中可以看到是中间的一根红色线，渐隐渐现，扫描时在还能出现些许黄色的小圆点。

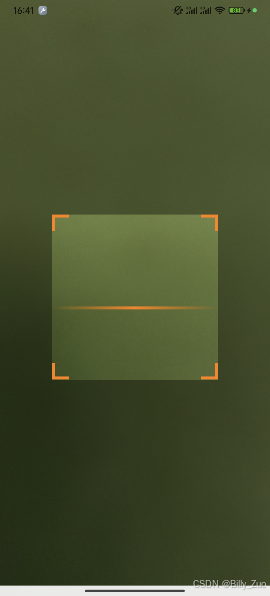

这里我们要做的是去掉中间红色的线，换成我们绘制的扫描线，并在四个角绘制边角。这里我们的自定义view只需要继承原先的ViewfinderView，并重写onDraw(),去掉不需要的，绘制我们的需要的即可。

复制代码

class CustomViewfinderView(context: Context, attrs: AttributeSet?) : ViewfinderView(context, attrs) {
/* ****************************************** 边角线相关属性 ************************************************/ //"边角线长度/扫描边框长度"的占比 (比例越大，线越长)
var mLineRate: Float = 0.1f
//边角线厚度 (建议使用dp)
var mLineDepth: Float = dp2px(4).toFloat()
//边角线颜色
var mLineColor: Int
/* ******************************************* 扫描线相关属性 ************************************************/ //扫描线起始位置
var mScanLinePosition: Int = 0
//扫描线厚度
var mScanLineDepth: Float = dp2px(4).toFloat()
//扫描线每次移动距离
var mScanLineDy: Float = dp2px(3).toFloat()
//渐变线
var mLinearGradient: LinearGradient? = null
//图形paint
var mBitmapPaint: Paint
///颜色在渐变中所占比例，此处均衡渐变
var mPositions: FloatArray = floatArrayOf(0f, 0.5f, 1f)
//线性梯度各个位置对应的颜色值
var mScanLineColor: IntArray = intArrayOf(0x00000000, Color.YELLOW, 0x00000000)
//扫描框宽、高
var mScanFrameWidth: Float
var mScanFrameHeight: Float
init {
val typedArray = context.obtainStyledAttributes(attrs, R.styleable.CustomViewfinderView)
mLineColor = typedArray.getColor(R.styleable.CustomViewfinderView_lineColor, Color.YELLOW)
mScanLineColor[1] =
typedArray.getColor(R.styleable.CustomViewfinderView_cornerColor, Color.YELLOW)
mScanFrameWidth = typedArray.getDimension(
R.styleable.CustomViewfinderView_scanFrameWidth,
dp2px(160).toFloat()
)
mScanFrameHeight = typedArray.getDimension(
R.styleable.CustomViewfinderView_scanFrameHeight,
dp2px(160).toFloat()
)
typedArray.recycle()
mBitmapPaint = Paint()
mBitmapPaint.isAntiAlias = true
}
@SuppressLint("DrawAllocation")
override fun onDraw(canvas: Canvas) {
refreshSizes()
if (framingRect == null || previewSize == null) {
return
}
val frame = framingRect
val width = width
val height = height
//绘制扫描框外部遮罩
paint.color = if (resultBitmap != null) resultColor else maskColor
canvas.drawRect(0f, 0f, width.toFloat(), frame.top.toFloat(), paint)
canvas.drawRect(
0f,
frame.top.toFloat(),
frame.left.toFloat(),
(frame.bottom + 1).toFloat(),
paint
)
canvas.drawRect(
(frame.right + 1).toFloat(),
frame.top.toFloat(),
width.toFloat(),
(frame.bottom + 1).toFloat(),
paint
)
canvas.drawRect(0f, (frame.bottom + 1).toFloat(), width.toFloat(), height.toFloat(), paint)
//绘制4个角
paint.color = mLineColor
canvas.drawRect(
frame.left.toFloat(),
frame.top.toFloat(),
frame.left + frame.width() * mLineRate,
frame.top + mLineDepth,
paint
)
canvas.drawRect(
frame.left.toFloat(),
frame.top.toFloat(),
frame.left + mLineDepth,
frame.top + frame.height() * mLineRate,
paint
)
canvas.drawRect(
frame.right - frame.width() * mLineRate,
frame.top.toFloat(),
frame.right.toFloat(),
frame.top + mLineDepth,
paint
)
canvas.drawRect(
frame.right - mLineDepth,
frame.top.toFloat(),
frame.right.toFloat(),
frame.top + frame.height() * mLineRate,
paint
)
canvas.drawRect(
frame.left.toFloat(),
frame.bottom - mLineDepth,
frame.left + frame.width() * mLineRate,
frame.bottom.toFloat(),
paint
)
canvas.drawRect(
frame.left.toFloat(),
frame.bottom - frame.height() * mLineRate,
frame.left + mLineDepth,
frame.bottom.toFloat(),
paint
)
canvas.drawRect(
frame.right - frame.width() * mLineRate,
frame.bottom - mLineDepth,
frame.right.toFloat(),
frame.bottom.toFloat(),
paint
)
canvas.drawRect(
frame.right - mLineDepth,
frame.bottom - frame.height() * mLineRate,
frame.right.toFloat(),
frame.bottom.toFloat(),
paint
)
if (resultBitmap != null) {
// Draw the opaque result bitmap over the scanning rectangle
paint.alpha = CURRENT_POINT_OPACITY
canvas.drawBitmap(resultBitmap, null, frame, paint)
} else {
// 绘制渐变扫描线
mScanLinePosition = (mScanLinePosition + mScanLineDy).toInt()
if (mScanLinePosition >= frame.height()) {
mScanLinePosition = 0
}
mLinearGradient = LinearGradient(
frame.left.toFloat(),
(frame.top + mScanLinePosition).toFloat(),
frame.right.toFloat(),
(frame.top + mScanLinePosition).toFloat(),
mScanLineColor,
mPositions,
Shader.TileMode.CLAMP
)
paint.setShader(mLinearGradient)
canvas.drawRect(
frame.left.toFloat(),
(frame.top + mScanLinePosition).toFloat(),
frame.right.toFloat(),
frame.top + mScanLinePosition + mScanLineDepth,
paint
)
paint.setShader(null)
//绘制资源图片扫描线
// Rect lineRect = new Rect();
// lineRect.left = frame.left;
// lineRect.top = frame.top + mScanLinePosition;
// lineRect.right = frame.right;
// lineRect.bottom = frame.top + dp2px(6) + mScanLinePosition;
// Bitmap bitmap = BitmapFactory.decodeResource(getResources(),R.drawable.img_line);
// canvas.drawBitmap(bitmap, null, lineRect, mBitmapPaint);
//============绘制扫描时小圆点，效果为默认=======================
val scaleX = this.width / previewSize.width.toFloat()
val scaleY = this.height / previewSize.height.toFloat()
// draw the last possible result points
if (!lastPossibleResultPoints.isEmpty()) {
paint.alpha = CURRENT_POINT_OPACITY / 2
paint.color = resultPointColor
val radius = POINT_SIZE / 2.0f
for (point in lastPossibleResultPoints) {
canvas.drawCircle(
(point.x * scaleX).toInt().toFloat(),
(point.y * scaleY).toInt().toFloat(),
radius, paint
)
}
lastPossibleResultPoints.clear()
}
// draw current possible result points
if (!possibleResultPoints.isEmpty()) {
paint.alpha = CURRENT_POINT_OPACITY
paint.color = resultPointColor
for (point in possibleResultPoints) {
canvas.drawCircle(
(point.x * scaleX).toInt().toFloat(),
(point.y * scaleY).toInt().toFloat(),
POINT_SIZE.toFloat(), paint
)
}
// swap and clear buffers
val temp = possibleResultPoints
possibleResultPoints = lastPossibleResultPoints
lastPossibleResultPoints = temp
possibleResultPoints.clear()
}
//============绘制扫描时小圆点，效果为默认 end=======================
}
//定时刷新扫描框
postInvalidateDelayed(
INT_ANIMATION_DELAY,
frame.left - POINT_SIZE,
frame.top - POINT_SIZE,
frame.right + POINT_SIZE,
frame.bottom + POINT_SIZE
)
}
override fun refreshSizes() {
if (cameraPreview == null) {
return
}
//添加设置边框大小代码
cameraPreview.framingRectSize =
Size(mScanFrameWidth.toInt(), mScanFrameHeight.toInt())
val framingRect = cameraPreview.framingRect
val previewSize = cameraPreview.previewSize
if (framingRect != null && previewSize != null) {
this.framingRect = framingRect
this.previewSize = previewSize
}
}
private fun dp2px(dp: Int): Int {
val density = context.resources.displayMetrics.density
return (dp * density + 0.5f).toInt()
}
companion object {
//重绘时间间隔
const val INT_ANIMATION_DELAY: Long = 12
}
}

复制代码

<?xml version="1.0" encoding="utf-8"?>
<resources>
<declare-styleable name="CustomViewfinderView">
<attr format="color" name="lineColor"/>
<attr format="color" name="cornerColor"/>
<attr format="dimension" name="scanFrameWidth"/>
<attr format="dimension" name="scanFrameHeight"/>
</declare-styleable>
</resources>

复制代码

<?xml version="1.0" encoding="utf-8"?>
<merge xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto">
<com.journeyapps.barcodescanner.BarcodeView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:id="@+id/zxing_barcode_surface"/>
<com.home.testzxing.CustomViewfinderView
android:layout_width="match_parent"
app:lineColor="#ff8100"
app:cornerColor="#ff8100"
app:scanFrameWidth="180dp"
app:scanFrameHeight="180dp"
android:layout_height="match_parent"
android:id="@+id/zxing_viewfinder_view"/>
<TextView android:id="@+id/zxing_status_view"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="bottom|center_horizontal"
android:background="@color/zxing_transparent"
android:text="@string/zxing_msg_default_status"
android:textColor="@color/zxing_status_text"/>
</merge>

复制代码

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/main"
android:layout_width="match_parent"
android:layout_height="match_parent">
<com.journeyapps.barcodescanner.DecoratedBarcodeView
android:id="@+id/barcodeScanner"
android:layout_width="match_parent"
android:layout_height="match_parent"
app:zxing_scanner_layout="@layout/custom_barcode_scanner"
/>
</androidx.constraintlayout.widget.ConstraintLayout>

复制代码

pluginManagement {
repositories {
maven { url=uri ("https://maven.aliyun.com/repository/releases")}
maven { url=uri ("https://maven.aliyun.com/repository/google")}
maven { url=uri ("https://maven.aliyun.com/repository/central")}
maven { url=uri ("https://maven.aliyun.com/repository/gradle-plugin")}
maven { url=uri ("https://maven.aliyun.com/repository/public")}
google()
mavenCentral()
jcenter()
gradlePluginPortal()
}
}
dependencyResolutionManagement {
repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
repositories {
maven { url=uri ("https://maven.aliyun.com/repository/releases")}
maven { url=uri ("https://maven.aliyun.com/repository/google")}
maven { url=uri ("https://maven.aliyun.com/repository/central")}
maven { url=uri ("https://maven.aliyun.com/repository/gradle-plugin")}
maven { url=uri ("https://maven.aliyun.com/repository/public")}
google()
jcenter()
mavenCentral()
maven { url = uri("https://jitpack.io") }
//配置华为扫码 HMS Core SDK的Maven仓地址
maven { url = uri("https://developer.huawei.com/repo/") }
}
}

复制代码

//华为扫码库
implementation("com.huawei.hms:scanplus:1.3.2.300")

复制代码

val option =
HmsScanAnalyzerOptions.Creator()
.setHmsScanTypes(HmsScan.ALL_SCAN_TYPE)
.create()
ScanUtil.startScan(activity, Constants.SCAN_REQUEST_CODE, option)

复制代码

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:my_view="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent">
<FrameLayout
android:id="@+id/rim1"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="#C0C0C0" />
<ImageView
android:id="@+id/back_img"
android:layout_width="48dp"
android:layout_height="48dp"
android:layout_alignParentStart="true"
android:layout_alignParentLeft="true"
android:layout_marginStart="12dp"
android:layout_marginTop="4dp"
android:gravity="center"
android:padding="12dp"
android:src="@drawable/ic_back" />
<ImageView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_centerInParent="true"
android:layout_centerHorizontal="true"
android:alpha="0.1"
android:background="#FF000000" />
<ImageView
android:id="@+id/scan_view_finder"
android:layout_width="300dp"
android:layout_height="300dp"
android:layout_centerInParent="true"
android:layout_centerHorizontal="true"
android:background="@drawable/scanningframe" />
<ImageView
android:id="@+id/imgSelect"
android:layout_width="40dp"
android:layout_height="wrap_content"
android:layout_alignParentTop="true"
android:layout_alignParentEnd="true"
android:layout_marginTop="15dp"
android:layout_marginEnd="15dp"
android:contentDescription="@null"
android:src="@drawable/ic_select_img" />
</RelativeLayout>

复制代码

class ScanActivity : AppCompatActivity() {
companion object {
private const val SCAN_FRAME_SIZE = 300
}
private var remoteView: RemoteView? = null
var mScreenWidth = 0
var mScreenHeight = 0
private val mBinding by lazy {
ActivityScanBinding.inflate(layoutInflater)
}
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(mBinding.root)
//1.get screen density to caculate viewfinder's rect
val dm = resources.displayMetrics
//2.get screen size
val density = dm.density
mScreenWidth = dm.widthPixels
mScreenHeight = dm.heightPixels
val scanFrameSize = (SCAN_FRAME_SIZE * density)
//3.calculate viewfinder's rect,it's in the middle of the layout
//set scanning area(Optional, rect can be null,If not configure,default is in the center of layout)
val rect = Rect()
apply {
rect.left = (mScreenWidth / 2 - scanFrameSize / 2).toInt()
rect.right = (mScreenWidth / 2 + scanFrameSize / 2).toInt()
rect.top = (mScreenHeight / 2 - scanFrameSize / 2).toInt()
rect.bottom = (mScreenHeight / 2 + scanFrameSize / 2).toInt()
}
//initialize RemoteView instance, and set calling back for scanning result
remoteView = RemoteView.Builder().setContext(this).setBoundingBox(rect)
.setFormat(HmsScan.ALL_SCAN_TYPE).build()
remoteView?.onCreate(savedInstanceState)
remoteView?.setOnResultCallback { result ->
if (result != null && result.isNotEmpty() && result[0] != null && !TextUtils.isEmpty(
result[0].getOriginalValue()
)
) {
val intent = Intent()
intent.apply {
putExtra("scanResult", result[0])
}
setResult(Activity.RESULT_OK, intent)
this.finish()
}
}
// Add the defined RemoteView to the page layout.
val params = FrameLayout.LayoutParams(
LinearLayout.LayoutParams.MATCH_PARENT,
LinearLayout.LayoutParams.MATCH_PARENT
)
mBinding.rim1.addView(remoteView, params)
setOnClick()
}
private fun setOnClick() {
mBinding.backImg.setOnClickListener{
// finish()
//控制闪光灯开启和关闭
if (remoteView?.lightStatus == true) {
remoteView?.switchLight()
LogUtils.d("关闭闪光灯")
} else {
remoteView?.switchLight()
LogUtils.d("打开闪光灯")
}
}
mBinding.imgSelect.setOnClickListener {
EasyPhotos.createAlbum(
this, false, false,
GlideEngine.getInstance()
)
.setFileProviderAuthority(BuildConfig.APPLICATION_ID)
.setCount(1)
.start(object : SelectCallback() {
override fun onResult(photos: ArrayList<Photo>?, isOriginal: Boolean) {
photos?.let {
val path = photos.first().path
if (TextUtils.isEmpty(path)) {
return
}
// Obtain the bitmap from the image path.
val bitmap = ScanUtil.compressBitmap(applicationContext, path)
// Call the decodeWithBitmap method to pass the bitmap.
val options =
HmsScanAnalyzerOptions.Creator()
.setHmsScanTypes(HmsScan.ALL_SCAN_TYPE)
.setPhotoMode(false)
.create()
val result = ScanUtil.decodeWithBitmap(
applicationContext,
bitmap,
options
)
// Obtain the scanning result.
if (result != null && result.isNotEmpty()) {
val resultText = result.joinToString { it.originalValue }
Log.d("sTag", resultText)
Toast.makeText(
applicationContext, resultText, Toast.LENGTH_SHORT
).show()
}
}
}
override fun onCancel() {
Toast.makeText(
applicationContext,
"图片选取失败",
Toast.LENGTH_SHORT
)
.show()
}
})
}
}
//manage remoteView lifecycle
override fun onStart() {
super.onStart()
remoteView?.onStart()
}
override fun onResume() {
super.onResume()
remoteView?.onResume()
}
override fun onPause() {
super.onPause()
remoteView?.onPause()
}
override fun onDestroy() {
super.onDestroy()
remoteView?.onDestroy()
}
override fun onStop() {
super.onStop()
remoteView?.onStop()
}
}

复制代码

repositories {
//...
mavenCentral()
}

复制代码

implementation 'com.github.jenly1314:zxing-lite:3.2.0'

复制代码

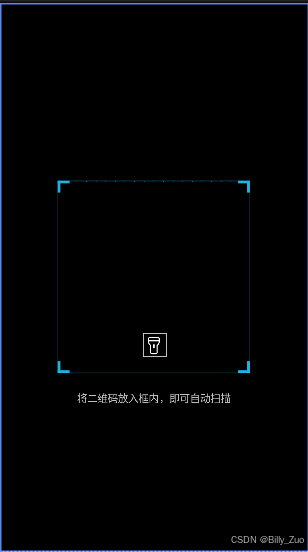

<?xml version="1.0" encoding="UTF-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent">
<androidx.camera.view.PreviewView
android:id="@+id/previewView"
android:layout_width="match_parent"
android:layout_height="match_parent" />
<com.king.view.viewfinderview.ViewfinderView
android:id="@+id/viewfinderView"
android:layout_width="match_parent"
android:layout_height="match_parent"
app:vvLabelText="将二维码放入框内，即可自动扫描"
app:vvLabelTextLocation="bottom"
app:vvLaserStyle="grid" />
<ImageView
android:id="@+id/ivFlashlight"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center"
android:layout_marginTop="@dimen/camera_scan_flashlight_margin_top"
android:contentDescription="@null"
android:src="@drawable/camera_scan_flashlight_selector" />
</FrameLayout>

复制代码

class ScanZxingLiteActivity : BarcodeCameraScanActivity() {
override fun initCameraScan(cameraScan: CameraScan<Result>) {
super.initCameraScan(cameraScan)
// 根据需要设置CameraScan相关配置
cameraScan.setPlayBeep(true);
}
override fun createAnalyzer(): Analyzer<Result> {
//初始化解码配置
val decodeConfig = DecodeConfig();
decodeConfig.setHints(DecodeFormatManager.QR_CODE_HINTS)//如果只有识别二维码的需求，这样设置效率会更高，不设置默认为DecodeFormatManager.DEFAULT_HINTS
.setFullAreaScan(false)//设置是否全区域识别，默认false
.setAreaRectRatio(0.8f)//设置识别区域比例，默认0.8，设置的比例最终会在预览区域裁剪基于此比例的一个矩形进行扫码识别
.setAreaRectVerticalOffset(0)//设置识别区域垂直方向偏移量，默认为0，为0表示居中，可以为负数
.setAreaRectHorizontalOffset(0);//设置识别区域水平方向偏移量，默认为0，为0表示居中，可以为负数
// BarcodeCameraScanActivity默认使用的MultiFormatAnalyzer，这里也可以改为使用QRCodeAnalyzer
return MultiFormatAnalyzer(decodeConfig);
}
override fun getLayoutId(): Int {
//设置屏幕常亮
window.addFlags(WindowManager.LayoutParams.FLAG_KEEP_SCREEN_ON)
return R.layout.activity_scan_zxing_lite;
}
override fun onScanResultCallback(result: AnalyzeResult<Result>) {
ToastUtils.showShort(result.result.text)
// 停止分析
cameraScan.setAnalyzeImage(false);
// 返回结果
val intent = Intent();
intent.putExtra(CameraScan.SCAN_RESULT, result.getResult().getText());
setResult(Activity.RESULT_OK, intent);
finish();
}
}

复制代码

<activity
android:name=".module.home.scan.ScanZxingLiteActivity"
android:exported="false"
android:theme="@style/CameraScanTheme"/>

复制代码

<color name="camera_scan_navigation_bar_color">#00000000</color>
<color name="camera_scan_status_bar_color">#00000000</color>
<dimen name="camera_scan_flashlight_margin_top">90dp</dimen>
<style name="CameraScanTheme" parent="Theme.AppCompat.Light.DarkActionBar">
<item name="windowNoTitle">true</item>
<item name="windowActionBar">false</item>
<item name="colorPrimary">@android:color/black</item>
<item name="colorPrimaryDark">@android:color/black</item>
<item name="android:windowTranslucentStatus">true</item>
<item name="android:windowTranslucentNavigation">true</item>
<item name="android:statusBarColor">@color/camera_scan_status_bar_color</item>
<item name="android:navigationBarColor">@color/camera_scan_navigation_bar_color</item>
</style>

复制代码

class FullScreenQRCodeScanActivity : BarcodeCameraScanActivity() {
override fun initUI() {
super.initUI()
// 设置取景框样式
viewfinderView.setViewfinderStyle(ViewfinderView.ViewfinderStyle.POPULAR)
}
override fun initCameraScan(cameraScan: CameraScan<Result>) {
super.initCameraScan(cameraScan)
// 根据需要设置CameraScan相关配置
cameraScan.setPlayBeep(true)
}
override fun createAnalyzer(): Analyzer<Result>? {
// 初始化解码配置
val decodeConfig = DecodeConfig().apply {
// 如果只有识别二维码的需求，这样设置效率会更高，不设置默认为DecodeFormatManager.DEFAULT_HINTS
hints = DecodeFormatManager.QR_CODE_HINTS
// 设置是否全区域识别，默认false
isFullAreaScan = true
}
// BarcodeCameraScanActivity默认使用的MultiFormatAnalyzer，这里可以改为使用QRCodeAnalyzer
return QRCodeAnalyzer(decodeConfig)
}
/**
* 布局ID；通过覆写此方法可以自定义布局
*
* @return 布局ID
*/
override fun getLayoutId(): Int {
return super.getLayoutId()
}
override fun onScanResultCallback(result: AnalyzeResult<Result>) {
// 停止分析
cameraScan.setAnalyzeImage(false)
// 显示结果点
displayResultPoint(result)
// 返回结果
val intent = Intent()
intent.putExtra(CameraScan.SCAN_RESULT, result.result.text)
setResult(Activity.RESULT_OK, intent)
finish()
}
/**
* 显示结果点
*/
private fun displayResultPoint(result: AnalyzeResult<Result>) {
var width = result.imageWidth
var height = result.imageHeight
val resultPoints = result.result.resultPoints
val size = resultPoints.size
if (size > 0) {
var x = 0f
var y = 0f
resultPoints.forEach {
x += it.x
y += it.y
}
var centerX = x / size
var centerY = y / size
//将实际的结果中心点坐标转换成界面预览的坐标
val point = PointUtils.transform(

复制代码

<activity
android:name=".module.home.scan.FullScreenQRCodeScanActivity"
android:exported="false"
android:theme="@style/CameraScanTheme"/>

复制代码

<?xml version="1.0" encoding="UTF-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent">
<androidx.camera.view.PreviewView
android:id="@+id/previewView"
android:layout_width="match_parent"
android:layout_height="match_parent" />
<com.king.view.viewfinderview.ViewfinderView
android:id="@+id/viewfinderView"
android:layout_width="match_parent"
android:layout_height="match_parent" />
<ImageView
android:id="@+id/ivFlashlight"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center"
android:layout_marginTop="@dimen/camera_scan_flashlight_margin_top"
android:contentDescription="@null"
android:src="@drawable/camera_scan_flashlight_selector" />
</FrameLayout>

复制代码

/**
* 布局ID；通过覆写此方法可以自定义布局
*
* @return 布局ID
*/
override fun getLayoutId(): Int {
//设置屏幕常亮
window.addFlags(WindowManager.LayoutParams.FLAG_KEEP_SCREEN_ON)
// return super.getLayoutId()
return R.layout.activity_scan_zxing_full_custom
}

复制代码
