鸿蒙OpenHarmony【共享元素转场 (一镜到底)】 ArkUI 转场动画 - IT评测·应用市场-qidao123.com

class PostData {
avatar: Resource = $r('app.media.flower');
name: string = '';
message: string = '';
images: Resource[] = [];
}
@Entry
@Component
struct Index {
@State isExpand: boolean = false;
@State @Watch('onItemClicked') selectedIndex: number = -1;
private allPostData: PostData[] = [

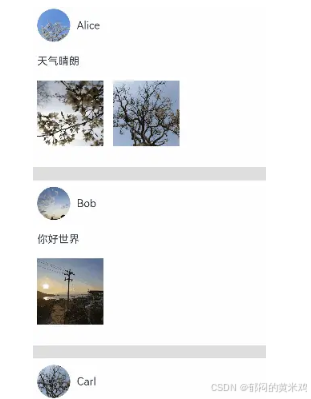

{ avatar: $r('app.media.flower'), name: 'Alice', message: '天气晴朗',
images: [$r('app.media.spring'), $r('app.media.tree')] },

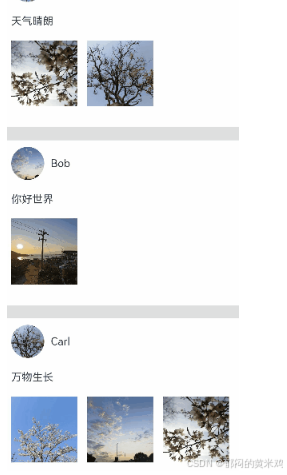

{ avatar: $r('app.media.sky'), name: 'Bob', message: '你好世界',
images: [$r('app.media.island')] },
{ avatar: $r('app.media.tree'), name: 'Carl', message: '万物生长',
images: [$r('app.media.flower'), $r('app.media.sky'), $r('app.media.spring')] }];
private onItemClicked(): void {
if (this.selectedIndex < 0) {
return;
}
this.getUIContext()?.animateTo({
duration: 350,
curve: Curve.Friction
}, () => {
this.isExpand = !this.isExpand;
});
}
build() {
Column({ space: 20 }) {
ForEach(this.allPostData, (postData: PostData, index: number) => {
// 当点击了某个post后，会使其余的post消失下树
if (!this.isExpand || this.selectedIndex === index) {
Column() {
Post({ data: postData, selecteIndex: this.selectedIndex, index: index })
}
.width('100%')
// 对出现消失的post添加透明度转场和位移转场效果
.transition(TransitionEffect.OPACITY
.combine(TransitionEffect.translate({ y: index < this.selectedIndex ? -250 : 250 }))
.animation({ duration: 350, curve: Curve.Friction}))
}
}, (postData: PostData, index: number) => index.toString())
}
.size({ width: '100%', height: '100%' })
.backgroundColor('#40808080')
}
}
@Component
export default struct Post {
@Link selecteIndex: number;
@Prop data: PostData;
@Prop index: number;
@State itemHeight: number = 250;
@State isExpand: boolean = false;
@State expandImageSize: number = 100;
@State avatarSize: number = 50;
build() {
Column({ space: 20 }) {
Row({ space: 10 }) {
Image(this.data.avatar)
.size({ width: this.avatarSize, height: this.avatarSize })
.borderRadius(this.avatarSize / 2)
.clip(true)
Text(this.data.name)
}
.justifyContent(FlexAlign.Start)
Text(this.data.message)
Row({ space: 15 }) {
ForEach(this.data.images, (imageResource: Resource, index: number) => {
Image(imageResource)
.size({ width: this.expandImageSize, height: this.expandImageSize })
}, (imageResource: Resource, index: number) => index.toString())
}
if (this.isExpand) {
Column() {
Text('评论区')
// 对评论区文本添加出现消失转场效果
.transition( TransitionEffect.OPACITY
.animation({ duration: 350, curve: Curve.Friction }))
.padding({ top: 10 })
}
.transition(TransitionEffect.asymmetric(
TransitionEffect.opacity(0.99)
.animation({ duration: 350, curve: Curve.Friction }),
TransitionEffect.OPACITY.animation({ duration: 0 })
))
.size({ width: '100%'})
}
}
.backgroundColor(Color.White)
.size({ width: '100%', height: this.itemHeight })
.alignItems(HorizontalAlign.Start)
.padding({ left: 10, top: 10 })
.onClick(() => {
this.selecteIndex = -1;
this.selecteIndex = this.index;
this.getUIContext()?.animateTo({
duration: 350,
curve: Curve.Friction
}, () => {
// 对展开的post做宽高动画，并对头像尺寸和图片尺寸加动画
this.isExpand = !this.isExpand;
this.itemHeight = this.isExpand ? 780 : 250;
this.avatarSize = this.isExpand ? 75: 50;
this.expandImageSize = (this.isExpand && this.data.images.length > 0)
? (360 - (this.data.images.length + 1) * 15) / this.data.images.length : 100;
})
})
}
}
ts

复制代码

// Index.ets
import { createPostNode, getPostNode, PostNode } from "../PostNode"
import { componentUtils, curves } from '@kit.ArkUI';
@Entry
@Component
struct Index {
// 新建一镜到底动画类
@State AnimationProperties: AnimationProperties = new AnimationProperties();
private listArray: Array<number> = [1, 2, 3, 4, 5, 6, 7, 8 ,9, 10];
build() {
// 卡片折叠态，展开态的共同父组件
Stack() {
List({space: 20}) {
ForEach(this.listArray, (item: number) => {
ListItem() {
// 卡片折叠态
PostItem({ index: item, AnimationProperties: this.AnimationProperties })
}
})
}
.clip(false)
.alignListItem(ListItemAlign.Center)
if (this.AnimationProperties.isExpandPageShow) {
// 卡片展开态
ExpandPage({ AnimationProperties: this.AnimationProperties })
}
}
.key('rootStack')
.enabled(this.AnimationProperties.isEnabled)
}
}
@Component
struct PostItem {
@Prop index: number
@Link AnimationProperties: AnimationProperties;
@State nodeController: PostNode | undefined = undefined;
// 折叠时详细内容隐藏
private showDetailContent: boolean = false;
aboutToAppear(): void {
this.nodeController = createPostNode(this.getUIContext(), this.index.toString(), this.showDetailContent);
if (this.nodeController != undefined) {
// 设置回调，当卡片从展开态回到折叠态时触发
this.nodeController.setCallback(this.resetNode.bind(this));
}
}
resetNode() {
this.nodeController = getPostNode(this.index.toString());
}
build() {
Stack() {
NodeContainer(this.nodeController)
}
.width('100%')
.height(100)
.key(this.index.toString())
.onClick( ()=> {
if (this.nodeController != undefined) {
// 卡片从折叠态节点下树
this.nodeController.onRemove();
}
// 触发卡片从折叠到展开态的动画
this.AnimationProperties.expandAnimation(this.index);
})
}
}
@Component
struct ExpandPage {
@Link AnimationProperties: AnimationProperties;
@State nodeController: PostNode | undefined = undefined;
// 展开时详细内容出现
private showDetailContent: boolean = true;
aboutToAppear(): void {
// 获取对应序号的卡片组件
this.nodeController = getPostNode(this.AnimationProperties.curIndex.toString())
// 更新为详细内容出现
this.nodeController?.update(this.AnimationProperties.curIndex.toString(), this.showDetailContent)
}
build() {
Stack() {
NodeContainer(this.nodeController)
}
.width('100%')
.height(this.AnimationProperties.changedHeight ? '100%' : 100)
.translate({ x: this.AnimationProperties.translateX, y: this.AnimationProperties.translateY })
.position({ x: this.AnimationProperties.positionX, y: this.AnimationProperties.positionY })
.onClick(() => {
this.getUIContext()?.animateTo({ curve: curves.springMotion(0.6, 0.9),
onFinish: () => {
if (this.nodeController != undefined) {
// 执行回调，折叠态节点获取卡片组件
this.nodeController.callCallback();
// 当前展开态节点的卡片组件下树
this.nodeController.onRemove();
}
// 卡片展开态节点下树
this.AnimationProperties.isExpandPageShow = false;
this.AnimationProperties.isEnabled = true;
}
}, () => {
// 卡片从展开态回到折叠态
this.AnimationProperties.isEnabled = false;
this.AnimationProperties.translateX = 0;
this.AnimationProperties.translateY = 0;
this.AnimationProperties.changedHeight = false;
// 更新为详细内容消失
this.nodeController?.update(this.AnimationProperties.curIndex.toString(), false);
})
})
}
}
class RectInfo {
left: number = 0;
top: number = 0;
right: number = 0;
bottom: number = 0;
width: number = 0;
height: number = 0;
}
// 封装的一镜到底动画类
@Observed
class AnimationProperties {
public isExpandPageShow: boolean = false;
// 控制组件是否响应点击事件
public isEnabled: boolean = true;
// 展开卡片的序号
public curIndex: number = -1;
public translateX: number = 0;
public translateY: number = 0;
public positionX: number = 0;
public positionY: number = 0;
public changedHeight: boolean = false;
private calculatedTranslateX: number = 0;
private calculatedTranslateY: number = 0;
// 设置卡片展开后相对父组件的位置
private expandTranslateX: number = 0;
private expandTranslateY: number = 0;
public expandAnimation(index: number): void {
// 记录展开态卡片的序号
if (index != undefined) {
this.curIndex = index;
}
// 计算折叠态卡片相对父组件的位置
this.calculateData(index.toString());
// 展开态卡片上树
this.isExpandPageShow = true;
// 卡片展开的属性动画
animateTo({ curve: curves.springMotion(0.6, 0.9)
}, () => {
this.translateX = this.calculatedTranslateX;
this.translateY = this.calculatedTranslateY;
this.changedHeight = true;
})
}
// 获取需要跨节点迁移的组件的位置，及迁移前后节点的公共父节点的位置，用以计算做动画组件的动画参数
public calculateData(key: string): void {
let clickedImageInfo = this.getRectInfoById(key);
let rootStackInfo = this.getRectInfoById('rootStack');
this.positionX = px2vp(clickedImageInfo.left - rootStackInfo.left);
this.positionY = px2vp(clickedImageInfo.top - rootStackInfo.top);
this.calculatedTranslateX = px2vp(rootStackInfo.left - clickedImageInfo.left) + this.expandTranslateX;
this.calculatedTranslateY = px2vp(rootStackInfo.top - clickedImageInfo.top) + this.expandTranslateY;
}
// 根据组件的id获取组件的位置信息
private getRectInfoById(id: string): RectInfo {
let componentInfo: componentUtils.ComponentInfo = componentUtils.getRectangleById(id);
if (!componentInfo) {
throw Error('object is empty');
}
let rstRect: RectInfo = new RectInfo();
const widthScaleGap = componentInfo.size.width * (1 - componentInfo.scale.x) / 2;
const heightScaleGap = componentInfo.size.height * (1 - componentInfo.scale.y) / 2;
rstRect.left = componentInfo.translate.x + componentInfo.windowOffset.x + widthScaleGap;
rstRect.top = componentInfo.translate.y + componentInfo.windowOffset.y + heightScaleGap;
rstRect.right =
componentInfo.translate.x + componentInfo.windowOffset.x + componentInfo.size.width - widthScaleGap;
rstRect.bottom =
componentInfo.translate.y + componentInfo.windowOffset.y + componentInfo.size.height - heightScaleGap;
rstRect.width = rstRect.right - rstRect.left;
rstRect.height = rstRect.bottom - rstRect.top;
return {
left: rstRect.left,
right: rstRect.right,
top: rstRect.top,
bottom: rstRect.bottom,
width: rstRect.width,
height: rstRect.height
}
}
}
ts

复制代码

// PostNode.ets
// 跨容器迁移能力
import { UIContext } from '@ohos.arkui.UIContext';
import { NodeController, BuilderNode, FrameNode } from '@ohos.arkui.node';
import { curves } from '@kit.ArkUI';
class Data {
item: string | null = null
isExpand: Boolean | false = false
}
@Builder
function PostBuilder(data: Data) {
// 跨容器迁移组件置于@Builder内
Column() {
Row() {
Row()
.backgroundColor(Color.Pink)
.borderRadius(20)
.width(80)
.height(80)
Column() {

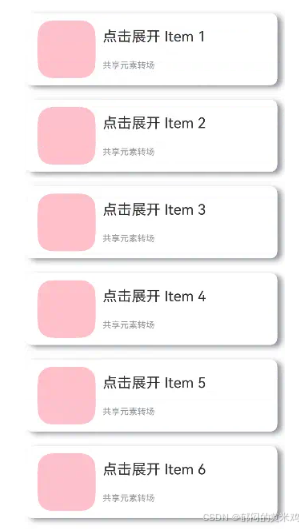

Text('点击展开 Item ' + data.item)
.fontSize(20)
Text('共享元素转场')
.fontSize(12)
.fontColor(0x909399)
}
.alignItems(HorizontalAlign.Start)
.justifyContent(FlexAlign.SpaceAround)
.margin({ left: 10 })
.height(80)
}
.width('90%')
.height(100)
// 展开后显示细节内容
if (data.isExpand) {
Row() {
Text('展开态')
.fontSize(28)
.fontColor(0x909399)
.textAlign(TextAlign.Center)
.transition(TransitionEffect.OPACITY.animation({ curve: curves.springMotion(0.6, 0.9) }))
}
.width('90%')
.justifyContent(FlexAlign.Center)
}
}
.width('90%')
.height('100%')
.alignItems(HorizontalAlign.Center)
.borderRadius(10)
.margin({ top: 15 })
.backgroundColor(Color.White)
.shadow({
radius: 20,
color: 0x909399,
offsetX: 20,
offsetY: 10
})
}
class __InternalValue__{
flag:boolean =false;
};
export class PostNode extends NodeController {
private node: BuilderNode<Data[]> | null = null;
private isRemove: __InternalValue__ = new __InternalValue__();
private callback: Function | undefined = undefined
private data: Data | null = null
makeNode(uiContext: UIContext): FrameNode | null {
if(this.isRemove.flag == true){
return null;
}
if (this.node != null) {
return this.node.getFrameNode();
}
return null;
}
init(uiContext: UIContext, id: string, isExpand: boolean) {
if (this.node != null) {
return;
}
// 创建节点，需要uiContext
this.node = new BuilderNode(uiContext)
// 创建离线组件
this.data = { item: id, isExpand: isExpand }
this.node.build(wrapBuilder<Data[]>(PostBuilder), this.data)
}
update(id: string, isExpand: boolean) {
if (this.node !== null) {
// 调用update进行更新。
this.data = { item: id, isExpand: isExpand }
this.node.update(this.data);
}
}
setCallback(callback: Function | undefined) {
this.callback = callback
}
callCallback() {
if (this.callback != undefined) {
this.callback();
}
}
onRemove(){
this.isRemove.flag = true;
// 组件迁移出节点时触发重建
this.rebuild();
this.isRemove.flag = false;
}
}
let gNodeMap: Map<string, PostNode | undefined> = new Map();
export const createPostNode =
(uiContext: UIContext, id: string, isExpand: boolean): PostNode | undefined => {
let node = new PostNode();
node.init(uiContext, id, isExpand);
gNodeMap.set(id, node);
return node;
}
export const getPostNode = (id: string): PostNode | undefined => {
if (!gNodeMap.has(id)) {
return undefined
}
return gNodeMap.get(id);
}
export const deleteNode = (id: string) => {
gNodeMap.delete(id)
}
ts

复制代码

├──entry/src/main/ets // 代码区
│ ├──CustomTransition
│ │ ├──AnimationProperties.ets // 一镜到底转场动画封装
│ │ └──CustomNavigationUtils.ets // Navigation自定义转场动画配置
│ ├──entryability
│ │ └──EntryAbility.ets // 程序入口类
│ ├──NodeContainer
│ │ └──CustomComponent.ets // 自定义占位节点
│ ├──pages
│ │ ├──Index.ets // 导航页面
│ │ ├──PageOne.ets // 缩略图页面
│ │ └──PageTwo.ets // 全屏展开页面
│ └──utils
│ ├──ComponentAttrUtils.ets // 组件位置获取
│ └──WindowUtils.ets // 窗口信息
└──entry/src/main/resources // 资源文件

复制代码

// Index.ets
import { AnimateCallback, CustomTransition } from '../CustomTransition/CustomNavigationUtils';
const TAG: string = 'Index';
@Entry
@Component
struct Index {
private pageInfos: NavPathStack = new NavPathStack();
// 允许进行自定义转场的页面名称
private allowedCustomTransitionFromPageName: string[] = ['PageOne'];
private allowedCustomTransitionToPageName: string[] = ['PageTwo'];
aboutToAppear(): void {
this.pageInfos.pushPath({ name: 'PageOne' });
}
private isCustomTransitionEnabled(fromName: string, toName: string): boolean {
// 点击和返回均需要进行自定义转场，因此需要分别判断
if ((this.allowedCustomTransitionFromPageName.includes(fromName)
&& this.allowedCustomTransitionToPageName.includes(toName))
|| (this.allowedCustomTransitionFromPageName.includes(toName)
&& this.allowedCustomTransitionToPageName.includes(fromName))) {
return true;
}
return false;
}
build() {
Navigation(this.pageInfos)
.hideNavBar(true)
.customNavContentTransition((from: NavContentInfo, to: NavContentInfo, operation: NavigationOperation) => {
if ((!from || !to) || (!from.name || !to.name)) {
return undefined;
}
// 通过from和to的name对自定义转场路由进行管控
if (!this.isCustomTransitionEnabled(from.name, to.name)) {
return undefined;
}
// 需要对转场页面是否注册了animation进行判断，来决定是否进行自定义转场
let fromParam: AnimateCallback = CustomTransition.getInstance().getAnimateParam(from.index);
let toParam: AnimateCallback = CustomTransition.getInstance().getAnimateParam(to.index);
if (!fromParam.animation || !toParam.animation) {
return undefined;
}
// 一切判断完成后，构造customAnimation给系统侧调用，执行自定义转场动画
let customAnimation: NavigationAnimatedTransition = {
onTransitionEnd: (isSuccess: boolean) => {
console.log(TAG, `current transition result is ${isSuccess}`);
},
timeout: 2000,
transition: (transitionProxy: NavigationTransitionProxy) => {
console.log(TAG, 'trigger transition callback');
if (fromParam.animation) {
fromParam.animation(operation == NavigationOperation.PUSH, true, transitionProxy);
}
if (toParam.animation) {
toParam.animation(operation == NavigationOperation.PUSH, false, transitionProxy);
}
}
};
return customAnimation;
})
}
}
ts

复制代码

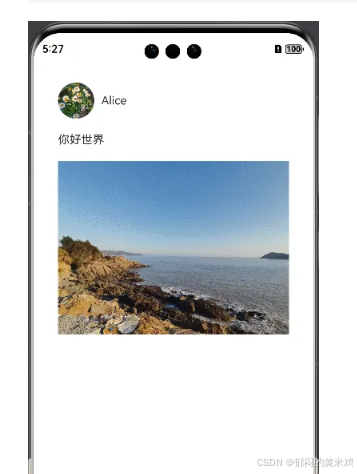

// PageOne.ets
import { CustomTransition } from '../CustomTransition/CustomNavigationUtils';
import { MyNodeController, createMyNode, getMyNode } from '../NodeContainer/CustomComponent';
import { ComponentAttrUtils, RectInfoInPx } from '../utils/ComponentAttrUtils';
import { WindowUtils } from '../utils/WindowUtils';
@Builder
export function PageOneBuilder() {
PageOne();
}
@Component
export struct PageOne {
private pageInfos: NavPathStack = new NavPathStack();
private pageId: number = -1;
@State myNodeController: MyNodeController | undefined = new MyNodeController(false);
aboutToAppear(): void {
let node = getMyNode();
if (node == undefined) {
// 新建自定义节点
createMyNode(this.getUIContext());
}
this.myNodeController = getMyNode();
}
private doFinishTransition(): void {
// PageTwo结束转场时将节点从PageTwo迁移回PageOne
this.myNodeController = getMyNode();
}
private registerCustomTransition(): void {
// 注册自定义动画协议
CustomTransition.getInstance().registerNavParam(this.pageId,
(isPush: boolean, isExit: boolean, transitionProxy: NavigationTransitionProxy) => {}, 500);
}
private onCardClicked(): void {
let cardItemInfo: RectInfoInPx =
ComponentAttrUtils.getRectInfoById(WindowUtils.window.getUIContext(), 'card');
let param: Record<string, Object> = {};
param['cardItemInfo'] = cardItemInfo;
param['doDefaultTransition'] = (myController: MyNodeController) => {
this.doFinishTransition()
};
this.pageInfos.pushPath({ name: 'PageTwo', param: param });
// 自定义节点从PageOne下树
if (this.myNodeController != undefined) {
(this.myNodeController as MyNodeController).onRemove();
}
}
build() {
NavDestination() {
Stack() {
Column({ space: 20 }) {
Row({ space: 10 }) {
Image($r("app.media.avatar"))
.size({ width: 50, height: 50 })
.borderRadius(25)
.clip(true)
Text('Alice')
}
.justifyContent(FlexAlign.Start)
Text('你好世界')
NodeContainer(this.myNodeController)
.size({ width: 320, height: 250 })
.onClick(() => {
this.onCardClicked()
})
}
.alignItems(HorizontalAlign.Start)
.margin(30)
}
}
.onReady((context: NavDestinationContext) => {
this.pageInfos = context.pathStack;
this.pageId = this.pageInfos.getAllPathName().length - 1;
this.registerCustomTransition();
})
.onDisAppear(() => {
CustomTransition.getInstance().unRegisterNavParam(this.pageId);
// 自定义节点从PageOne下树
if (this.myNodeController != undefined) {
(this.myNodeController as MyNodeController).onRemove();
}
})
}
}
ts

复制代码

// PageTwo.ets
import { CustomTransition } from '../CustomTransition/CustomNavigationUtils';
import { AnimationProperties } from '../CustomTransition/AnimationProperties';
import { RectInfoInPx } from '../utils/ComponentAttrUtils';
import { getMyNode, MyNodeController } from '../NodeContainer/CustomComponent';
@Builder
export function PageTwoBuilder() {
PageTwo();
}
@Component
export struct PageTwo {
@State pageInfos: NavPathStack = new NavPathStack();
@State AnimationProperties: AnimationProperties = new AnimationProperties();
@State myNodeController: MyNodeController | undefined = new MyNodeController(false);
private pageId: number = -1;
private shouldDoDefaultTransition: boolean = false;
private prePageDoFinishTransition: () => void = () => {};
private cardItemInfo: RectInfoInPx = new RectInfoInPx();
@StorageProp('windowSizeChanged') @Watch('unRegisterNavParam') windowSizeChangedTime: number = 0;
@StorageProp('onConfigurationUpdate') @Watch('unRegisterNavParam') onConfigurationUpdateTime: number = 0;
aboutToAppear(): void {
// 迁移自定义节点至当前页面
this.myNodeController = getMyNode();
}
private unRegisterNavParam(): void {
this.shouldDoDefaultTransition = true;
}
private onBackPressed(): boolean {
if (this.shouldDoDefaultTransition) {
CustomTransition.getInstance().unRegisterNavParam(this.pageId);
this.pageInfos.pop();
this.prePageDoFinishTransition();
this.shouldDoDefaultTransition = false;
return true;
}
this.pageInfos.pop();
return true;
}
build() {
NavDestination() {
// Stack需要设置alignContent为TopStart，否则在高度变化过程中，截图和内容都会随高度重新布局位置
Stack({ alignContent: Alignment.TopStart }) {
Stack({ alignContent: Alignment.TopStart }) {
Column({space: 20}) {
NodeContainer(this.myNodeController)
if (this.AnimationProperties.showDetailContent)
Text('展开态内容')
.fontSize(20)
.transition(TransitionEffect.OPACITY)
.margin(30)
}
.alignItems(HorizontalAlign.Start)
}
.position({ y: this.AnimationProperties.positionValue })
}
.scale({ x: this.AnimationProperties.scaleValue, y: this.AnimationProperties.scaleValue })
.translate({ x: this.AnimationProperties.translateX, y: this.AnimationProperties.translateY })
.width(this.AnimationProperties.clipWidth)
.height(this.AnimationProperties.clipHeight)
.borderRadius(this.AnimationProperties.radius)
// expandSafeArea使得Stack做沉浸式效果，向上扩到状态栏，向下扩到导航条
.expandSafeArea([SafeAreaType.SYSTEM])
// 对高度进行裁切
.clip(true)
}
.backgroundColor(this.AnimationProperties.navDestinationBgColor)
.hideTitleBar(true)
.onReady((context: NavDestinationContext) => {
this.pageInfos = context.pathStack;
this.pageId = this.pageInfos.getAllPathName().length - 1;
let param = context.pathInfo?.param as Record<string, Object>;
this.prePageDoFinishTransition = param['doDefaultTransition'] as () => void;
this.cardItemInfo = param['cardItemInfo'] as RectInfoInPx;
CustomTransition.getInstance().registerNavParam(this.pageId,
(isPush: boolean, isExit: boolean, transitionProxy: NavigationTransitionProxy) => {
this.AnimationProperties.doAnimation(
this.cardItemInfo, isPush, isExit, transitionProxy, 0,
this.prePageDoFinishTransition, this.myNodeController);
}, 500);
})
.onBackPressed(() => {
return this.onBackPressed();
})
.onDisAppear(() => {
CustomTransition.getInstance().unRegisterNavParam(this.pageId);
})
}
}
ts

复制代码

// CustomNavigationUtils.ets
// 配置Navigation自定义转场动画
export interface AnimateCallback {
animation: ((isPush: boolean, isExit: boolean, transitionProxy: NavigationTransitionProxy) => void | undefined)
| undefined;
timeout: (number | undefined) | undefined;
}
const customTransitionMap: Map<number, AnimateCallback> = new Map();
export class CustomTransition {
private constructor() {};
static delegate = new CustomTransition();
static getInstance() {
return CustomTransition.delegate;
}
// 注册页面的动画回调，name是注册页面的动画的回调
// animationCallback是需要执行的动画内容，timeout是转场结束的超时时间
registerNavParam(
name: number,
animationCallback: (operation: boolean, isExit: boolean, transitionProxy: NavigationTransitionProxy) => void,
timeout: number): void {
if (customTransitionMap.has(name)) {
let param = customTransitionMap.get(name);
if (param != undefined) {
param.animation = animationCallback;
param.timeout = timeout;
return;
}
}
let params: AnimateCallback = { timeout: timeout, animation: animationCallback };
customTransitionMap.set(name, params);
}
unRegisterNavParam(name: number): void {
customTransitionMap.delete(name);
}
getAnimateParam(name: number): AnimateCallback {
let result: AnimateCallback = {
animation: customTransitionMap.get(name)?.animation,
timeout: customTransitionMap.get(name)?.timeout,
};
return result;
}
}
ts

复制代码

// 工程配置文件module.json5中配置 {"routerMap": "$profile:route_map"}
// route_map.json
{
"routerMap": [
{
"name": "PageOne",
"pageSourceFile": "src/main/ets/pages/PageOne.ets",
"buildFunction": "PageOneBuilder"
},
{
"name": "PageTwo",
"pageSourceFile": "src/main/ets/pages/PageTwo.ets",
"buildFunction": "PageTwoBuilder"
}
]
}
ts

复制代码

// AnimationProperties.ets
// 一镜到底转场动画封装
import { curves } from '@kit.ArkUI';
import { RectInfoInPx } from '../utils/ComponentAttrUtils';
import { WindowUtils } from '../utils/WindowUtils';
import { MyNodeController } from '../NodeContainer/CustomComponent';
const TAG: string = 'AnimationProperties';
const DEVICE_BORDER_RADIUS: number = 34;
// 将自定义一镜到底转场动画进行封装，其他界面也需要做自定义一镜到底转场的话，可以直接复用，减少工作量
@Observed
export class AnimationProperties {
public navDestinationBgColor: ResourceColor = Color.Transparent;
public translateX: number = 0;
public translateY: number = 0;
public scaleValue: number = 1;
public clipWidth: Dimension = 0;
public clipHeight: Dimension = 0;
public radius: number = 0;
public positionValue: number = 0;
public showDetailContent: boolean = false;
public doAnimation(cardItemInfo_px: RectInfoInPx, isPush: boolean, isExit: boolean,
transitionProxy: NavigationTransitionProxy, extraTranslateValue: number, prePageOnFinish: (index: MyNodeController) => void, myNodeController: MyNodeController|undefined): void {
// 首先计算卡片的宽高与窗口宽高的比例
let widthScaleRatio = cardItemInfo_px.width / WindowUtils.windowWidth_px;
let heightScaleRatio = cardItemInfo_px.height / WindowUtils.windowHeight_px;
let isUseWidthScale = widthScaleRatio > heightScaleRatio;
let initScale: number = isUseWidthScale ? widthScaleRatio : heightScaleRatio;
let initTranslateX: number = 0;
let initTranslateY: number = 0;
let initClipWidth: Dimension = 0;
let initClipHeight: Dimension = 0;
// 使得PageTwo卡片向上扩到状态栏
let initPositionValue: number = -px2vp(WindowUtils.topAvoidAreaHeight_px + extraTranslateValue);;
if (isUseWidthScale) {
initTranslateX = px2vp(cardItemInfo_px.left - (WindowUtils.windowWidth_px - cardItemInfo_px.width) / 2);
initClipWidth = '100%';
initClipHeight = px2vp((cardItemInfo_px.height) / initScale);
initTranslateY = px2vp(cardItemInfo_px.top - ((vp2px(initClipHeight) - vp2px(initClipHeight) * initScale) / 2));
} else {
initTranslateY = px2vp(cardItemInfo_px.top - (WindowUtils.windowHeight_px - cardItemInfo_px.height) / 2);
initClipHeight = '100%';
initClipWidth = px2vp((cardItemInfo_px.width) / initScale);
initTranslateX = px2vp(cardItemInfo_px.left - (WindowUtils.windowWidth_px / 2 - cardItemInfo_px.width / 2));
}
// 转场动画开始前通过计算scale、translate、position和clip height & width，确定节点迁移前后位置一致
console.log(TAG, 'initScale: ' + initScale + ' initTranslateX ' + initTranslateX +
' initTranslateY ' + initTranslateY + ' initClipWidth ' + initClipWidth +
' initClipHeight ' + initClipHeight + ' initPositionValue ' + initPositionValue);
// 转场至新页面
if (isPush && !isExit) {
this.scaleValue = initScale;
this.translateX = initTranslateX;
this.clipWidth = initClipWidth;
this.clipHeight = initClipHeight;
this.translateY = initTranslateY;
this.positionValue = initPositionValue;
animateTo({
curve: curves.interpolatingSpring(0, 1, 328, 36),
onFinish: () => {
if (transitionProxy) {
transitionProxy.finishTransition();
}
}
}, () => {
this.scaleValue = 1.0;
this.translateX = 0;
this.translateY = 0;
this.clipWidth = '100%';
this.clipHeight = '100%';
// 页面圆角与系统圆角一致
this.radius = DEVICE_BORDER_RADIUS;
this.showDetailContent = true;
})
animateTo({
duration: 100,
curve: Curve.Sharp,
}, () => {
// 页面由透明逐渐变为设置背景色
this.navDestinationBgColor = '#00ffffff';
})
// 返回旧页面
} else if (!isPush && isExit) {
animateTo({
duration: 350,
curve: Curve.EaseInOut,
onFinish: () => {
if (transitionProxy) {
transitionProxy.finishTransition();
}
prePageOnFinish(myNodeController);
// 自定义节点从PageTwo下树
if (myNodeController != undefined) {
(myNodeController as MyNodeController).onRemove();
}
}
}, () => {
this.scaleValue = initScale;
this.translateX = initTranslateX;
this.translateY = initTranslateY;
this.radius = 0;
this.clipWidth = initClipWidth;
this.clipHeight = initClipHeight;
this.showDetailContent = false;
})
animateTo({
duration: 200,
delay: 150,
curve: Curve.Friction,
}, () => {
this.navDestinationBgColor = Color.Transparent;
})
}
}
}
ts

复制代码

// ComponentAttrUtils.ets
// 获取组件相对窗口的位置
import { componentUtils, UIContext } from '@kit.ArkUI';
import { JSON } from '@kit.ArkTS';
export class ComponentAttrUtils {
// 根据组件的id获取组件的位置信息
public static getRectInfoById(context: UIContext, id: string): RectInfoInPx {
if (!context || !id) {
throw Error('object is empty');
}
let componentInfo: componentUtils.ComponentInfo = context.getComponentUtils().getRectangleById(id);
if (!componentInfo) {
throw Error('object is empty');
}
let rstRect: RectInfoInPx = new RectInfoInPx();
const widthScaleGap = componentInfo.size.width * (1 - componentInfo.scale.x) / 2;
const heightScaleGap = componentInfo.size.height * (1 - componentInfo.scale.y) / 2;
rstRect.left = componentInfo.translate.x + componentInfo.windowOffset.x + widthScaleGap;
rstRect.top = componentInfo.translate.y + componentInfo.windowOffset.y + heightScaleGap;
rstRect.right =
componentInfo.translate.x + componentInfo.windowOffset.x + componentInfo.size.width - widthScaleGap;
rstRect.bottom =
componentInfo.translate.y + componentInfo.windowOffset.y + componentInfo.size.height - heightScaleGap;
rstRect.width = rstRect.right - rstRect.left;
rstRect.height = rstRect.bottom - rstRect.top;
return {
left: rstRect.left,
right: rstRect.right,
top: rstRect.top,
bottom: rstRect.bottom,
width: rstRect.width,
height: rstRect.height
}
}
}
export class RectInfoInPx {
left: number = 0;
top: number = 0;
right: number = 0;
bottom: number = 0;
width: number = 0;
height: number = 0;
}
export class RectJson {
$rect: Array<number> = [];
}
ts

复制代码

// WindowUtils.ets
// 窗口信息
import { window } from '@kit.ArkUI';
export class WindowUtils {
public static window: window.Window;
public static windowWidth_px: number;
public static windowHeight_px: number;
public static topAvoidAreaHeight_px: number;
public static navigationIndicatorHeight_px: number;
}
ts

复制代码

// EntryAbility.ets
// 程序入口处的onWindowStageCreate增加对窗口宽高等的抓取
import { AbilityConstant, UIAbility, Want } from '@kit.AbilityKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { display, window } from '@kit.ArkUI';
import { WindowUtils } from '../utils/WindowUtils';
const TAG: string = 'EntryAbility';
export default class EntryAbility extends UIAbility {
private currentBreakPoint: string = '';
onCreate(want: Want, launchParam: AbilityConstant.LaunchParam): void {
hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onCreate');
}
onDestroy(): void {
hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onDestroy');
}
onWindowStageCreate(windowStage: window.WindowStage): void {
// Main window is created, set main page for this ability
hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onWindowStageCreate');
// 获取窗口宽高
WindowUtils.window = windowStage.getMainWindowSync();
WindowUtils.windowWidth_px = WindowUtils.window.getWindowProperties().windowRect.width;
WindowUtils.windowHeight_px = WindowUtils.window.getWindowProperties().windowRect.height;
this.updateBreakpoint(WindowUtils.windowWidth_px);
// 获取上方避让区(状态栏等)高度
let avoidArea = WindowUtils.window.getWindowAvoidArea(window.AvoidAreaType.TYPE_SYSTEM);
WindowUtils.topAvoidAreaHeight_px = avoidArea.topRect.height;
// 获取导航条高度
let navigationArea = WindowUtils.window.getWindowAvoidArea(window.AvoidAreaType.TYPE_NAVIGATION_INDICATOR);
WindowUtils.navigationIndicatorHeight_px = navigationArea.bottomRect.height;
console.log(TAG, 'the width is ' + WindowUtils.windowWidth_px + ' ' + WindowUtils.windowHeight_px + ' ' +
WindowUtils.topAvoidAreaHeight_px + ' ' + WindowUtils.navigationIndicatorHeight_px);
// 监听窗口尺寸、状态栏高度及导航条高度的变化并更新
try {
WindowUtils.window.on('windowSizeChange', (data) => {
console.log(TAG, 'on windowSizeChange, the width is ' + data.width + ', the height is ' + data.height);
WindowUtils.windowWidth_px = data.width;
WindowUtils.windowHeight_px = data.height;
this.updateBreakpoint(data.width);
AppStorage.setOrCreate('windowSizeChanged', Date.now())
})
WindowUtils.window.on('avoidAreaChange', (data) => {
if (data.type == window.AvoidAreaType.TYPE_SYSTEM) {
let topRectHeight = data.area.topRect.height;
console.log(TAG, 'on avoidAreaChange, the top avoid area height is ' + topRectHeight);
WindowUtils.topAvoidAreaHeight_px = topRectHeight;
} else if (data.type == window.AvoidAreaType.TYPE_NAVIGATION_INDICATOR) {
let bottomRectHeight = data.area.bottomRect.height;
console.log(TAG, 'on avoidAreaChange, the navigation indicator height is ' + bottomRectHeight);
WindowUtils.navigationIndicatorHeight_px = bottomRectHeight;
}
})
} catch (exception) {
console.log('register failed ' + JSON.stringify(exception));
}
windowStage.loadContent('pages/Index', (err) => {
if (err.code) {
hilog.error(0x0000, 'testTag', 'Failed to load the content. Cause: %{public}s', JSON.stringify(err) ?? '');
return;
}
hilog.info(0x0000, 'testTag', 'Succeeded in loading the content.');
});
}
updateBreakpoint(width: number) {
let windowWidthVp = width / (display.getDefaultDisplaySync().densityDPI / 160);
let newBreakPoint: string = '';
if (windowWidthVp < 400) {
newBreakPoint = 'xs';
} else if (windowWidthVp < 600) {
newBreakPoint = 'sm';
} else if (windowWidthVp < 800) {
newBreakPoint = 'md';
} else {
newBreakPoint = 'lg';
}
if (this.currentBreakPoint !== newBreakPoint) {
this.currentBreakPoint = newBreakPoint;
// 使用状态变量记录当前断点值
AppStorage.setOrCreate('currentBreakpoint', this.currentBreakPoint);
}
}
onWindowStageDestroy(): void {
// Main window is destroyed, release UI related resources
hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onWindowStageDestroy');
}
onForeground(): void {
// Ability has brought to foreground
hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onForeground');
}
onBackground(): void {
// Ability has back to background
hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onBackground');
}
}
ts

复制代码

// CustomComponent.ets
// 自定义占位节点，跨容器迁移能力
import { BuilderNode, FrameNode, NodeController } from '@kit.ArkUI';
@Builder
function CardBuilder() {
Image($r("app.media.card"))
.width('100%')
.id('card')
}
export class MyNodeController extends NodeController {
private CardNode: BuilderNode<[]> | null = null;
private wrapBuilder: WrappedBuilder<[]> = wrapBuilder(CardBuilder);
private needCreate: boolean = false;
private isRemove: boolean = false;
constructor(create: boolean) {
super();
this.needCreate = create;
}
makeNode(uiContext: UIContext): FrameNode | null {
if(this.isRemove == true){
return null;
}
if (this.needCreate && this.CardNode == null) {
this.CardNode = new BuilderNode(uiContext);
this.CardNode.build(this.wrapBuilder)
}
if (this.CardNode == null) {
return null;
}
return this.CardNode!.getFrameNode()!;
}
getNode(): BuilderNode<[]> | null {
return this.CardNode;
}
setNode(node: BuilderNode<[]> | null) {
this.CardNode = node;
this.rebuild();
}
onRemove() {
this.isRemove = true;
this.rebuild();
this.isRemove = false;
}
init(uiContext: UIContext) {
this.CardNode = new BuilderNode(uiContext);
this.CardNode.build(this.wrapBuilder)
}
}
let myNode: MyNodeController | undefined;
export const createMyNode =
(uiContext: UIContext) => {
myNode = new MyNodeController(false);
myNode.init(uiContext);
}
export const getMyNode = (): MyNodeController | undefined => {
return myNode;
}
ts

复制代码

├──entry/src/main/ets // 代码区
│ ├──entryability
│ │ └──EntryAbility.ets // 程序入口类
│ ├──NodeContainer
│ │ └──CustomComponent.ets // 自定义占位节点
│ ├──pages
│ │ └──Index.ets // 进行共享元素转场的主页面
│ └──utils
│ ├──ComponentAttrUtils.ets // 组件位置获取
│ └──WindowUtils.ets // 窗口信息
└──entry/src/main/resources // 资源文件

复制代码

// index.ets
import { MyNodeController, createMyNode, getMyNode } from '../NodeContainer/CustomComponent';
import { ComponentAttrUtils, RectInfoInPx } from '../utils/ComponentAttrUtils';
import { WindowUtils } from '../utils/WindowUtils';
import { inspector } from '@kit.ArkUI'
class AnimationInfo {
scale: number = 0;
translateX: number = 0;
translateY: number = 0;
clipWidth: Dimension = 0;
clipHeight: Dimension = 0;
}
@Entry
@Component
struct Index {
@State isShowSheet: boolean = false;
@State isShowImage: boolean = false;
@State isShowOverlay: boolean = false;
@State isAnimating: boolean = false;
@State isEnabled: boolean = true;
@State scaleValue: number = 0;
@State translateX: number = 0;
@State translateY: number = 0;
@State clipWidth: Dimension = 0;
@State clipHeight: Dimension = 0;
@State radius: number = 0;
// 原图的透明度
@State opacityDegree: number = 1;
// 抓取照片原位置信息
private originInfo: AnimationInfo = new AnimationInfo;
// 抓取照片在半模态页上位置信息
private targetInfo: AnimationInfo = new AnimationInfo;
// 半模态高度
private bindSheetHeight: number = 450;
// 半模态上图片圆角
private sheetRadius: number = 20;
// 设置半模态上图片的布局监听
listener:inspector.ComponentObserver = this.getUIContext().getUIInspector().createComponentObserver('target');
aboutToAppear(): void {
// 设置半模态上图片的布局完成回调
let onLayoutComplete:()=>void=():void=>{
// 目标图片布局完成时抓取布局信息
this.targetInfo = this.calculateData('target');
// 仅半模态正确布局且此时无动画时触发一镜到底动画
if (this.targetInfo.scale != 0 && this.targetInfo.clipWidth != 0 && this.targetInfo.clipHeight != 0 && !this.isAnimating) {
this.isAnimating = true;
// 用于一镜到底的模态页的属性动画
this.getUIContext()?.animateTo({
duration: 1000,
curve: Curve.Friction,
onFinish: () => {
// 模态转场页（overlay）上的自定义节点下树
this.isShowOverlay = false;
// 半模态上的自定义节点上树，由此完成节点迁移
this.isShowImage = true;
}
}, () => {
this.scaleValue = this.targetInfo.scale;
this.translateX = this.targetInfo.translateX;
this.clipWidth = this.targetInfo.clipWidth;
this.clipHeight = this.targetInfo.clipHeight;
// 修正因半模态高度和缩放导致的高度差
this.translateY = this.targetInfo.translateY +
(this.getUIContext().px2vp(WindowUtils.windowHeight_px) - this.bindSheetHeight
- this.getUIContext().px2vp(WindowUtils.navigationIndicatorHeight_px) - this.getUIContext().px2vp(WindowUtils.topAvoidAreaHeight_px));
// 修正因缩放导致的圆角差异
this.radius = this.sheetRadius / this.scaleValue
})
// 原图从透明到出现的动画
this.getUIContext()?.animateTo({
duration: 2000,
curve: Curve.Friction,
}, () => {
this.opacityDegree = 1;
})
}
}
// 打开布局监听
this.listener.on('layout', onLayoutComplete)
}
// 获取对应id的组件相对窗口左上角的属性
calculateData(id: string): AnimationInfo {
let itemInfo: RectInfoInPx =
ComponentAttrUtils.getRectInfoById(WindowUtils.window.getUIContext(), id);
// 首先计算图片的宽高与窗口宽高的比例
let widthScaleRatio = itemInfo.width / WindowUtils.windowWidth_px;
let heightScaleRatio = itemInfo.height / WindowUtils.windowHeight_px;
let isUseWidthScale = widthScaleRatio > heightScaleRatio;
let itemScale: number = isUseWidthScale ? widthScaleRatio : heightScaleRatio;
let itemTranslateX: number = 0;
let itemClipWidth: Dimension = 0;
let itemClipHeight: Dimension = 0;
let itemTranslateY: number = 0;
if (isUseWidthScale) {
itemTranslateX = this.getUIContext().px2vp(itemInfo.left - (WindowUtils.windowWidth_px - itemInfo.width) / 2);
itemClipWidth = '100%';
itemClipHeight = this.getUIContext().px2vp((itemInfo.height) / itemScale);
itemTranslateY = this.getUIContext().px2vp(itemInfo.top - ((this.getUIContext().vp2px(itemClipHeight) - this.getUIContext().vp2px(itemClipHeight) * itemScale) / 2));
} else {
itemTranslateY = this.getUIContext().px2vp(itemInfo.top - (WindowUtils.windowHeight_px - itemInfo.height) / 2);
itemClipHeight = '100%';
itemClipWidth = this.getUIContext().px2vp((itemInfo.width) / itemScale);
itemTranslateX = this.getUIContext().px2vp(itemInfo.left - (WindowUtils.windowWidth_px / 2 - itemInfo.width / 2));
}
return {
scale: itemScale,
translateX: itemTranslateX ,
translateY: itemTranslateY,
clipWidth: itemClipWidth,
clipHeight: itemClipHeight,
}
}

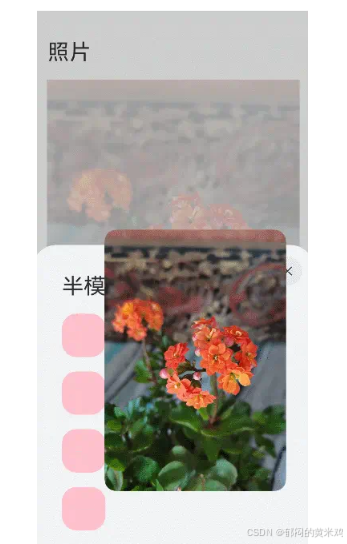

// 照片页
build() {
Column() {
Text('照片')
.textAlign(TextAlign.Start)
.width('100%')
.fontSize(30)
.padding(20)
Image($r("app.media.flower"))
.opacity(this.opacityDegree)
.width('90%')
.id('origin')// 挂载半模态页
.enabled(this.isEnabled)
.onClick(() => {
// 获取原始图像的位置信息，将模态页上图片移动缩放至该位置
this.originInfo = this.calculateData('origin');
this.scaleValue = this.originInfo.scale;
this.translateX = this.originInfo.translateX;
this.translateY = this.originInfo.translateY;
this.clipWidth = this.originInfo.clipWidth;
this.clipHeight = this.originInfo.clipHeight;
this.radius = 0;
this.opacityDegree = 0;
// 启动半模态页和模态页
this.isShowSheet = true;
this.isShowOverlay = true;
// 设置原图为不可交互抗打断
this.isEnabled = false;
})
}
.width('100%')
.height('100%')
.padding({ top: 20 })
.alignItems(HorizontalAlign.Center)
.bindSheet(this.isShowSheet, this.mySheet(), {
// Embedded模式使得其他页面可以高于半模态页
mode: SheetMode.EMBEDDED,
height: this.bindSheetHeight,
onDisappear: () => {
// 保证半模态消失时状态正确
this.isShowImage = false;
this.isShowSheet = false;
// 设置一镜到底动画又进入可触发状态
this.isAnimating = false;
// 原图重新变为可交互状态
this.isEnabled = true;
}
}) // 挂载模态页作为一镜到底动画的实现页
.bindContentCover(this.isShowOverlay, this.overlayNode(), {
// 模态页面设置为无转场
transition: TransitionEffect.IDENTITY,
})
}
// 半模态页面
@Builder
mySheet() {
Column({space: 20}) {
Text('半模态页面')
.fontSize(30)
Row({space: 40}) {
Column({space: 20}) {
ForEach([1, 2, 3, 4], () => {
Stack()
.backgroundColor(Color.Pink)
.borderRadius(20)
.width(60)
.height(60)
})
}
Column() {
if (this.isShowImage) {
// 半模态页面的自定义图片节点
ImageNode()
}
else {
// 抓取布局和占位用，实际不显示
Image($r("app.media.flower"))
.visibility(Visibility.Hidden)
}
}
.height(300)
.width(200)
.borderRadius(20)
.clip(true)
.id('target')
}
.alignItems(VerticalAlign.Top)
}
.alignItems(HorizontalAlign.Start)
.height('100%')
.width('100%')
.margin(40)
}
@Builder
overlayNode() {
// Stack需要设置alignContent为TopStart，否则在高度变化过程中，截图和内容都会随高度重新布局位置
Stack({ alignContent: Alignment.TopStart }) {
ImageNode()
}
.scale({ x: this.scaleValue, y: this.scaleValue, centerX: undefined, centerY: undefined})
.translate({ x: this.translateX, y: this.translateY })
.width(this.clipWidth)
.height(this.clipHeight)
.borderRadius(this.radius)
.clip(true)
}
}
@Component
struct ImageNode {
@State myNodeController: MyNodeController | undefined = new MyNodeController(false);
aboutToAppear(): void {
// 获取自定义节点
let node = getMyNode();
if (node == undefined) {
// 新建自定义节点
createMyNode(this.getUIContext());
}
this.myNodeController = getMyNode();
}
aboutToDisappear(): void {
if (this.myNodeController != undefined) {
// 节点下树
this.myNodeController.onRemove();
}
}
build() {
NodeContainer(this.myNodeController)
}
}
ts

复制代码

// CustomComponent.ets
// 自定义占位节点，跨容器迁移能力
import { BuilderNode, FrameNode, NodeController } from '@kit.ArkUI';
@Builder
function CardBuilder() {
Image($r("app.media.flower"))
// 避免第一次加载图片时图片闪烁
.syncLoad(true)
}
export class MyNodeController extends NodeController {
private CardNode: BuilderNode<[]> | null = null;
private wrapBuilder: WrappedBuilder<[]> = wrapBuilder(CardBuilder);
private needCreate: boolean = false;
private isRemove: boolean = false;
constructor(create: boolean) {
super();
this.needCreate = create;
}
makeNode(uiContext: UIContext): FrameNode | null {
if(this.isRemove == true){
return null;
}
if (this.needCreate && this.CardNode == null) {
this.CardNode = new BuilderNode(uiContext);
this.CardNode.build(this.wrapBuilder)
}
if (this.CardNode == null) {
return null;
}
return this.CardNode!.getFrameNode()!;
}
getNode(): BuilderNode<[]> | null {
return this.CardNode;
}
setNode(node: BuilderNode<[]> | null) {
this.CardNode = node;
this.rebuild();
}
onRemove() {
this.isRemove = true;
this.rebuild();
this.isRemove = false;
}
init(uiContext: UIContext) {
this.CardNode = new BuilderNode(uiContext);
this.CardNode.build(this.wrapBuilder)
}
}
let myNode: MyNodeController | undefined;
export const createMyNode =
(uiContext: UIContext) => {
myNode = new MyNodeController(false);
myNode.init(uiContext);
}
export const getMyNode = (): MyNodeController | undefined => {
return myNode;
}
ts

复制代码

// ComponentAttrUtils.ets
// 获取组件相对窗口的位置
import { componentUtils, UIContext } from '@kit.ArkUI';
import { JSON } from '@kit.ArkTS';
export class ComponentAttrUtils {
// 根据组件的id获取组件的位置信息
public static getRectInfoById(context: UIContext, id: string): RectInfoInPx {
if (!context || !id) {
throw Error('object is empty');
}
let componentInfo: componentUtils.ComponentInfo = context.getComponentUtils().getRectangleById(id);
if (!componentInfo) {
throw Error('object is empty');
}
let rstRect: RectInfoInPx = new RectInfoInPx();
const widthScaleGap = componentInfo.size.width * (1 - componentInfo.scale.x) / 2;
const heightScaleGap = componentInfo.size.height * (1 - componentInfo.scale.y) / 2;
rstRect.left = componentInfo.translate.x + componentInfo.windowOffset.x + widthScaleGap;
rstRect.top = componentInfo.translate.y + componentInfo.windowOffset.y + heightScaleGap;
rstRect.right =
componentInfo.translate.x + componentInfo.windowOffset.x + componentInfo.size.width - widthScaleGap;
rstRect.bottom =
componentInfo.translate.y + componentInfo.windowOffset.y + componentInfo.size.height - heightScaleGap;
rstRect.width = rstRect.right - rstRect.left;
rstRect.height = rstRect.bottom - rstRect.top;
return {
left: rstRect.left,
right: rstRect.right,
top: rstRect.top,
bottom: rstRect.bottom,
width: rstRect.width,
height: rstRect.height
}
}
}
export class RectInfoInPx {
left: number = 0;
top: number = 0;
right: number = 0;
bottom: number = 0;
width: number = 0;
height: number = 0;
}
export class RectJson {
$rect: Array<number> = [];
}
ts

复制代码

// WindowUtils.ets
// 窗口信息
import { window } from '@kit.ArkUI';
export class WindowUtils {
public static window: window.Window;
public static windowWidth_px: number;
public static windowHeight_px: number;
public static topAvoidAreaHeight_px: number;
public static navigationIndicatorHeight_px: number;
}
ts

复制代码

// EntryAbility.ets
// 程序入口处的onWindowStageCreate增加对窗口宽高等的抓取
import { AbilityConstant, UIAbility, Want } from '@kit.AbilityKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { display, window } from '@kit.ArkUI';
import { WindowUtils } from '../utils/WindowUtils';
const TAG: string = 'EntryAbility';
export default class EntryAbility extends UIAbility {
private currentBreakPoint: string = '';
onCreate(want: Want, launchParam: AbilityConstant.LaunchParam): void {
hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onCreate');
}
onDestroy(): void {
hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onDestroy');
}
onWindowStageCreate(windowStage: window.WindowStage): void {
// Main window is created, set main page for this ability
hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onWindowStageCreate');
// 获取窗口宽高
WindowUtils.window = windowStage.getMainWindowSync();
WindowUtils.windowWidth_px = WindowUtils.window.getWindowProperties().windowRect.width;
WindowUtils.windowHeight_px = WindowUtils.window.getWindowProperties().windowRect.height;
this.updateBreakpoint(WindowUtils.windowWidth_px);
// 获取上方避让区(状态栏等)高度
let avoidArea = WindowUtils.window.getWindowAvoidArea(window.AvoidAreaType.TYPE_SYSTEM);
WindowUtils.topAvoidAreaHeight_px = avoidArea.topRect.height;
// 获取导航条高度
let navigationArea = WindowUtils.window.getWindowAvoidArea(window.AvoidAreaType.TYPE_NAVIGATION_INDICATOR);
WindowUtils.navigationIndicatorHeight_px = navigationArea.bottomRect.height;
console.log(TAG, 'the width is ' + WindowUtils.windowWidth_px + ' ' + WindowUtils.windowHeight_px + ' ' +
WindowUtils.topAvoidAreaHeight_px + ' ' + WindowUtils.navigationIndicatorHeight_px);
// 监听窗口尺寸、状态栏高度及导航条高度的变化并更新
try {
WindowUtils.window.on('windowSizeChange', (data) => {
console.log(TAG, 'on windowSizeChange, the width is ' + data.width + ', the height is ' + data.height);
WindowUtils.windowWidth_px = data.width;
WindowUtils.windowHeight_px = data.height;
this.updateBreakpoint(data.width);
AppStorage.setOrCreate('windowSizeChanged', Date.now())
})
WindowUtils.window.on('avoidAreaChange', (data) => {
if (data.type == window.AvoidAreaType.TYPE_SYSTEM) {
let topRectHeight = data.area.topRect.height;
console.log(TAG, 'on avoidAreaChange, the top avoid area height is ' + topRectHeight);
WindowUtils.topAvoidAreaHeight_px = topRectHeight;
} else if (data.type == window.AvoidAreaType.TYPE_NAVIGATION_INDICATOR) {
let bottomRectHeight = data.area.bottomRect.height;
console.log(TAG, 'on avoidAreaChange, the navigation indicator height is ' + bottomRectHeight);
WindowUtils.navigationIndicatorHeight_px = bottomRectHeight;
}
})
} catch (exception) {
console.log('register failed ' + JSON.stringify(exception));
}
windowStage.loadContent('pages/Index', (err) => {
if (err.code) {
hilog.error(0x0000, 'testTag', 'Failed to load the content. Cause: %{public}s', JSON.stringify(err) ?? '');
return;
}
hilog.info(0x0000, 'testTag', 'Succeeded in loading the content.');
});
}
updateBreakpoint(width: number) {
let windowWidthVp = width / (display.getDefaultDisplaySync().densityDPI / 160);
let newBreakPoint: string = '';
if (windowWidthVp < 400) {
newBreakPoint = 'xs';
} else if (windowWidthVp < 600) {
newBreakPoint = 'sm';
} else if (windowWidthVp < 800) {
newBreakPoint = 'md';
} else {
newBreakPoint = 'lg';
}
if (this.currentBreakPoint !== newBreakPoint) {
this.currentBreakPoint = newBreakPoint;
// 使用状态变量记录当前断点值
AppStorage.setOrCreate('currentBreakpoint', this.currentBreakPoint);
}
}
onWindowStageDestroy(): void {
// Main window is destroyed, release UI related resources
hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onWindowStageDestroy');
}
onForeground(): void {
// Ability has brought to foreground
hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onForeground');
}
onBackground(): void {
// Ability has back to background
hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onBackground');
}
}
ts

复制代码

import { curves } from '@kit.ArkUI';
@Entry
@Component
struct IfElseGeometryTransition {
@State isShow: boolean = false;
build() {
Stack({ alignContent: Alignment.Center }) {
if (this.isShow) {
Image($r('app.media.spring'))
.autoResize(false)
.clip(true)
.width(200)
.height(200)
.borderRadius(100)
.geometryTransition("picture")
.transition(TransitionEffect.OPACITY)
// 在打断场景下，即动画过程中点击页面触发下一次转场，如果不加id，则会出现重影
// 加了id之后，新建的spring图片会复用之前的spring图片节点，不会重新创建节点，也就不会有重影问题
// 加id的规则为加在if和else下的第一个节点上，有多个并列节点则也需要进行添加
.id('item1')
} else {
// geometryTransition此处绑定的是容器，那么容器内的子组件需设为相对布局跟随父容器变化，
// 套多层容器为了说明相对布局约束传递
Column() {
Column() {
Image($r('app.media.sky'))
.size({ width: '100%', height: '100%' })
}
.size({ width: '100%', height: '100%' })
}
.width(100)
.height(100)
// geometryTransition会同步圆角，但仅限于geometryTransition绑定处，此处绑定的是容器
// 则对容器本身有圆角同步而不会操作容器内部子组件的borderRadius
.borderRadius(50)
.clip(true)
.geometryTransition("picture")
// transition保证节点离场不被立即析构，设置通用转场效果
.transition(TransitionEffect.OPACITY)
.position({ x: 40, y: 40 })
.id('item2')
}
}
.onClick(() => {
this.getUIContext()?.animateTo({
curve: curves.springMotion()
}, () => {
this.isShow = !this.isShow;
})
})
.size({ width: '100%', height: '100%' })
}
}
ts

复制代码

class PostData {
avatar: Resource = $r('app.media.flower');
name: string = '';
message: string = '';
images: Resource[] = [];
}
@Entry
@Component
struct Index {
@State isPersonalPageShow: boolean = false;
@State selectedIndex: number = 0;
@State alphaValue: number = 1;
private allPostData: PostData[] = [
{ avatar: $r('app.media.flower'), name: 'Alice', message: '天气晴朗',
images: [$r('app.media.spring'), $r('app.media.tree')] },
{ avatar: $r('app.media.sky'), name: 'Bob', message: '你好世界',
images: [$r('app.media.island')] },
{ avatar: $r('app.media.tree'), name: 'Carl', message: '万物生长',
images: [$r('app.media.flower'), $r('app.media.sky'), $r('app.media.spring')] }];
private onAvatarClicked(index: number): void {
this.selectedIndex = index;
this.getUIContext()?.animateTo({
duration: 350,
curve: Curve.Friction
}, () => {
this.isPersonalPageShow = !this.isPersonalPageShow;
this.alphaValue = 0;
});
}
private onPersonalPageBack(index: number): void {
this.getUIContext()?.animateTo({
duration: 350,
curve: Curve.Friction
}, () => {
this.isPersonalPageShow = !this.isPersonalPageShow;
this.alphaValue = 1;
});
}
@Builder
PersonalPageBuilder(index: number) {
Column({ space: 20 }) {
Image(this.allPostData[index].avatar)
.size({ width: 200, height: 200 })
.borderRadius(100)
// 头像配置共享元素效果，与点击的头像的id匹配
.geometryTransition(index.toString())
.clip(true)
.transition(TransitionEffect.opacity(0.99))
Text(this.allPostData[index].name)
.font({ size: 30, weight: 600 })
// 对文本添加出现转场效果
.transition(TransitionEffect.asymmetric(
TransitionEffect.OPACITY
.combine(TransitionEffect.translate({ y: 100 })),
TransitionEffect.OPACITY.animation({ duration: 0 })
))
Text('你好，我是' + this.allPostData[index].name)
// 对文本添加出现转场效果
.transition(TransitionEffect.asymmetric(
TransitionEffect.OPACITY
.combine(TransitionEffect.translate({ y: 100 })),
TransitionEffect.OPACITY.animation({ duration: 0 })
))
}
.padding({ top: 20 })
.size({ width: 360, height: 780 })
.backgroundColor(Color.White)
.onClick(() => {
this.onPersonalPageBack(index);
})
.transition(TransitionEffect.asymmetric(
TransitionEffect.opacity(0.99),
TransitionEffect.OPACITY
))
}
build() {
Column({ space: 20 }) {
ForEach(this.allPostData, (postData: PostData, index: number) => {
Column() {
Post({ data: postData, index: index, onAvatarClicked: (index: number) => { this.onAvatarClicked(index) } })
}
.width('100%')
}, (postData: PostData, index: number) => index.toString())
}
.size({ width: '100%', height: '100%' })
.backgroundColor('#40808080')
.bindContentCover(this.isPersonalPageShow,
this.PersonalPageBuilder(this.selectedIndex), { modalTransition: ModalTransition.NONE })
.opacity(this.alphaValue)
}
}
@Component
export default struct Post {
@Prop data: PostData;
@Prop index: number;
@State expandImageSize: number = 100;
@State avatarSize: number = 50;
private onAvatarClicked: (index: number) => void = (index: number) => { };
build() {
Column({ space: 20 }) {
Row({ space: 10 }) {
Image(this.data.avatar)
.size({ width: this.avatarSize, height: this.avatarSize })
.borderRadius(this.avatarSize / 2)
.clip(true)
.onClick(() => {
this.onAvatarClicked(this.index);
})
// 对头像绑定共享元素转场的id
.geometryTransition(this.index.toString(), {follow:true})
.transition(TransitionEffect.OPACITY.animation({ duration: 350, curve: Curve.Friction }))
Text(this.data.name)
}
.justifyContent(FlexAlign.Start)
Text(this.data.message)
Row({ space: 15 }) {
ForEach(this.data.images, (imageResource: Resource, index: number) => {
Image(imageResource)
.size({ width: 100, height: 100 })
}, (imageResource: Resource, index: number) => index.toString())
}
}
.backgroundColor(Color.White)
.size({ width: '100%', height: 250 })
.alignItems(HorizontalAlign.Start)
.padding({ left: 10, top: 10 })
}
}
ts

复制代码
