【LUT技术专题】SPFLUT代码解读

目录
原文概要
1. 训练
2. 压缩并转表
3. 微调
4. 测试

---

本文是对SPFLUT技术的代码解读，原文解读请看SPFLUT。
原文概要

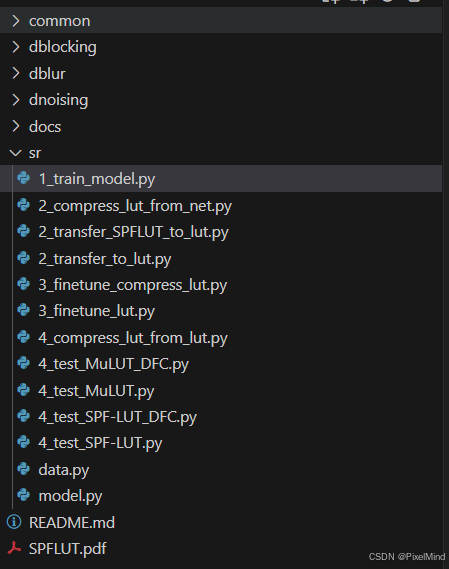

SPFLUT方法重点在于对角线优先压缩策略，该方法总体流程分为4个部门，训练、转换（内里包含了压缩）、微调、测试。其代码的总体结构如下：

可以看到流程与MULUT基本同等，只不过在第二步转换之前还有一步对LUT进行压缩的过程，即2_compress_lut_from_net.py文件。另外第三步的微调中也有针对压缩后的LUT进行微调的代码。

---

1. 训练

这里我们可以从sr/model.py中，获取到SPF_LUT_net模型的代码实现如下：

1. class SPF_LUT_net(nn.Module):
2.     def __init__(self, nf=32, scale=4, modes=['s', 'd', 'y'], stages=2):
3.         super(SPF_LUT_net, self).__init__()
4.         self.upscale = scale
5.         self.modes = modes
7.         self.convblock1 = ConvBlock(1, 2, scale=None, output_quant=False, modes=modes, nf=nf)
8.         self.convblock2 = ConvBlock(1, 2, scale=None, output_quant=False, modes=modes, nf=nf)
9.         self.convblock3 = ConvBlock(1, 2, scale=None, output_quant=False, modes=modes, nf=nf)
10.         self.convblock4 = ConvBlock(1, 1, scale=None, output_quant=False, modes=modes, nf=nf)
11.         self.ChannelConv = MuLUTcUnit(in_c=4, out_c=4, mode='1x1', nf=nf)
12.         self.upblock = ConvBlock(4, 1, scale=scale, output_quant=False, modes=modes, nf=nf)
15.     def forward(self, x, phase='train'):
16.         B, C, H, W = x.size()
17.         x = x.reshape((B * C, 1, H, W))
19.         refine_list = []
21.         # block1
22.         x = self.convblock1(x)
23.         avg_factor, bias, norm = len(self.modes) * 4, 127, 255.0
24.         x = round_func(torch.clamp((x / avg_factor) + bias, 0, 255)) / norm
26.         refine_list.append(x[:, 0:1, :, :])
27.         x = x[:, 1:, :, :]
29.         # block2
30.         x = self.convblock2(x)
31.         avg_factor, bias, norm = len(self.modes) * 4, 127, 255.0
32.         x = round_func(torch.clamp((x / avg_factor) + bias, 0, 255)) / norm
34.         refine_list.append(x[:, 0:1, :, :])
35.         x = x[:, 1:, :, :]
37.         # block3
38.         x = self.convblock3(x)
39.         avg_factor, bias, norm = len(self.modes) * 4, 127, 255.0
40.         x = round_func(torch.clamp((x / avg_factor) + bias, 0, 255)) / norm
42.         refine_list.append(x[:, 0:1, :, :])
43.         x = x[:, 1:, :, :]
45.         # block4
46.         x = self.convblock4(x)
47.         avg_factor, bias, norm = len(self.modes) * 4, 127, 255.0
48.         x = round_func(torch.clamp((x / avg_factor) + bias, 0, 255)) / norm
49.         refine_list.append(x)
51.         x = torch.cat(refine_list, dim=1)
52.         x = round_func(torch.tanh(self.ChannelConv(x)) * 127.0)
53.         x = round_func(torch.clamp(x + 127, 0, 255)) / 255.0
55.         x = self.upblock(x)
56.         avg_factor, bias, norm = len(self.modes), 0, 1
57.         x = round_func((x / avg_factor) + bias)
59.         if phase == 'train':
60.             x = x / 255.0
61.         x = x.reshape((B, C, self.upscale * H, self.upscale * W))
63.         return x

复制代码

通过上述代码可以看出，SPFLUT模型主要由两个子模块构成，一个是ConvBlock，另一个是MuLUTcUnit，此中ConvBlock的实现如下：

1. class ConvBlock(nn.Module):
2.     def __init__(self, in_c, out_c, scale=None, output_quant=False, modes=['s', 'd', 'y'], nf=64):
3.         super(ConvBlock, self).__init__()
4.         self.in_c = in_c
5.         self.out_c = out_c
6.         self.modes = modes
7.         self.module_dict = dict()
8.         self.upscale = scale
9.         self.output_quant = output_quant
11.         scale_factor = 1 if scale is None else scale ** 2
12.         for c in range(in_c):
13.             for mode in modes:
14.                 self.module_dict['DepthwiseBlock{}_{}'.format(c, mode)] = MuLUTConv('{}x{}'.format(mode.upper(), 'N'),
15.                                                                                     nf=nf, out_c=out_c * scale_factor,
16.                                                                                     stride=1)
17.         self.module_dict = nn.ModuleDict(self.module_dict)
18.         if scale is None:
19.             self.pixel_shuffle = identity
20.         else:
21.             self.pixel_shuffle = nn.PixelShuffle(scale)
23.     def forward(self, x):
24.         modes = self.modes
26.         x_out = 0
27.         for c in range(self.in_c):
28.             x_c = x[:, c:c + 1, :, :]
29.             pred = 0
30.             for mode in modes:
31.                 pad = mode_pad_dict[mode]
32.                 sub_module = self.module_dict['DepthwiseBlock{}_{}'.format(c, mode)]
33.                 for r in [0, 1, 2, 3]:
34.                     pred += round_func(torch.tanh(torch.rot90(self.pixel_shuffle(
35.                         sub_module(F.pad(torch.rot90(x_c, r, [2, 3]), (0, pad, 0, pad), mode='replicate'))),
36.                         (4 - r) % 4, [2, 3])) * 127)
38.             x_out += pred
39.         if self.output_quant:
40.             avg_factor = len(modes) * 4 * self.in_c
41.             x = round_func(torch.clamp(x_out / avg_factor, -1, 1) * 127) / 127
42.         else:
43.             x = x_out / self.in_c
45.         return x

复制代码

也是由MuLUTConv构成的，位于common/network.py中，而这个模块我们在MuLUT论文代码讲解中有提到，是一个由3种不同范例S、D、Y的kernel组成的一个RF=3x3的模块，这里还需要旋转和clamp等操作，防止每层的效果溢出。
而MuLUTcUnit即是通道上的MuLUT模块，位于common/network.py中，由于只在通道上操作，因此kernel_size上是1，主要建立起特性通道之间的关联。
整体结构是比力清晰的，尤其是对MuLUT的子模块熟悉的情况下，同样的，不清晰的读者可以初始化一个模型来渐渐推理tensor的shape来熟悉。

---

2. 压缩并转表

这部门代码位于2_compress_lut_from_net.py中，整体流程如下：

1. def compress_SPFLUT(opt):
2.     def save_SPFLUT_DFC(x, lut_path, module):
3.         # Split input to not over GPU memory
4.         B = x.size(0) // 100
5.         outputs = []
7.         # Extract input-output pairs
8.         with torch.no_grad():
9.             model_G.eval()
10.             for b in range(100):
11.                 if b == 99:
12.                     batch_input = x[b * B:]
13.                 else:
14.                     batch_input = x[b * B:(b + 1) * B]
16.                 batch_output = module(batch_input)
18.                 results = torch.round(torch.tanh(batch_output) * 127).cpu().data.numpy().astype(np.int8)
19.                 outputs += [results]
21.         results = np.concatenate(outputs, 0)
22.         results = results.reshape(x.size(0), -1)
23.         np.save(lut_path, results)
24.         print("Resulting LUT size: ", results.shape, "Saved to", lut_path)
27.     modes = [i for i in opt.modes]
28.     stages = opt.stages
30.     model = getattr(Model, 'SPF_LUT_net')
32.     model_G = model(nf=opt.nf, scale=opt.scale, modes=modes, stages=stages).cuda()
34.     lm = torch.load(os.path.join(opt.expDir, 'Model_{:06d}.pth'.format(opt.loadIter)))
35.     model_G.load_state_dict(lm, strict=True)
37.     input_tensor = get_input_tensor(opt)
38.     for mode in modes:
39.         if opt.cd == 'xyzt':
40.             input_tensor_c1 = compress_lut_xyzt(opt, input_tensor)
41.         elif opt.cd == 'xyz':
42.             input_tensor_c1 = compress_lut_xyz(opt, input_tensor)
43.         elif opt.cd == 'xy':
44.             input_tensor_c1 = compress_lut(opt, input_tensor)
45.         else:
46.             raise ValueError
47.         input_tensor_c2 = compress_lut_larger_interval(opt, input_tensor)
49.         if mode != 's':
50.             input_tensor_c1 = get_mode_input_tensor(input_tensor_c1, mode)
51.             input_tensor_c2 = get_mode_input_tensor(input_tensor_c2, mode)
53.         # conv1
54.         module = model_G.convblock1.module_dict['DepthwiseBlock{}_{}'.format(0, mode)]
55.         lut_path = os.path.join(opt.expDir, '{}_s{}c0_{}_compress1.npy'.format(opt.lutName, 1, mode))
56.         save_SPFLUT_DFC(input_tensor_c1, lut_path, module)
57.         lut_path = os.path.join(opt.expDir, '{}_s{}c0_{}_compress2.npy'.format(opt.lutName, 1, mode))
58.         save_SPFLUT_DFC(input_tensor_c2, lut_path, module)
60.         # conv2
61.         module = model_G.convblock2.module_dict['DepthwiseBlock{}_{}'.format(0, mode)]
62.         lut_path = os.path.join(opt.expDir, '{}_s{}c0_{}_compress1.npy'.format(opt.lutName, 2, mode))
63.         save_SPFLUT_DFC(input_tensor_c1, lut_path, module)
64.         lut_path = os.path.join(opt.expDir, '{}_s{}c0_{}_compress2.npy'.format(opt.lutName, 2, mode))
65.         save_SPFLUT_DFC(input_tensor_c2, lut_path, module)
67.         # conv3
68.         module = model_G.convblock3.module_dict['DepthwiseBlock{}_{}'.format(0, mode)]
69.         lut_path = os.path.join(opt.expDir, '{}_s{}c0_{}_compress1.npy'.format(opt.lutName, 3, mode))
70.         save_SPFLUT_DFC(input_tensor_c1, lut_path, module)
71.         lut_path = os.path.join(opt.expDir, '{}_s{}c0_{}_compress2.npy'.format(opt.lutName, 3, mode))
72.         save_SPFLUT_DFC(input_tensor_c2, lut_path, module)
74.         # conv4
75.         module = model_G.convblock4.module_dict['DepthwiseBlock{}_{}'.format(0, mode)]
76.         lut_path = os.path.join(opt.expDir, '{}_s{}c0_{}_compress1.npy'.format(opt.lutName, 4, mode))
77.         save_SPFLUT_DFC(input_tensor_c1, lut_path, module)
78.         lut_path = os.path.join(opt.expDir, '{}_s{}c0_{}_compress2.npy'.format(opt.lutName, 4, mode))
79.         save_SPFLUT_DFC(input_tensor_c2, lut_path, module)
81.         # conv6
82.         for c in range(4):
83.             module = model_G.upblock.module_dict['DepthwiseBlock{}_{}'.format(c, mode)]
84.             lut_path = os.path.join(opt.expDir, '{}_s{}c{}_{}_compress1.npy'.format(opt.lutName, 6,c, mode))
85.             save_SPFLUT_DFC(input_tensor_c1, lut_path, module)
86.             lut_path = os.path.join(opt.expDir, '{}_s{}c{}_{}_compress2.npy'.format(opt.lutName, 6,c, mode))
87.             save_SPFLUT_DFC(input_tensor_c2, lut_path, module)
89.     # conv5
90.     input_tensor = input_tensor.reshape((-1,4,1,1))
91.     module = model_G.ChannelConv
92.     lut_path = os.path.join(opt.expDir, '{}_s{}_channel.npy'.format(opt.lutName, 5))
93.     save_SPFLUT_DFC(input_tensor, lut_path, module)

复制代码

这里需要关注的细节是对角线压缩相干的3个函数：compress_lut_xyzt、compress_lut_xyz、compress_lut，对应于4维、3维和2维的压缩过程，以及非对角线压缩相干的函数compress_lut_larger_interval，最后我们可以发现对于通道的卷积conv5，作者是没有进行压缩的，由于通道conv不满意对角线先验，故不能进行对角线优先的压缩。
针对于对角线相干的函数：以2维压缩为例，跟我们之前的讲解是一样的。

1. def compress_lut(opt, input_tensor):
2.     base = torch.arange(0, 257, 2 ** opt.interval)  # 0-256
3.     base[-1] -= 1
4.     L = base.size(0)
5.     d = opt.dw
6.     diag = 2 * d + 1
7.     N = diag * L + (1 - diag ** 2) // 4
9.     input_tensor = input_tensor.reshape(L * L, L, L, 1, 2, 2)
10.     index_i = torch.zeros((N,)).type(torch.int64)
11.     index_j = torch.zeros((N,)).type(torch.int64)
12.     cnt = 0
13.     ref2index = np.zeros((L, diag), dtype=np.int_) - 1
14.     for i in range(L):
15.         for j in range(L):
16.             if abs(i - j) <= d:
17.                 index_i[cnt] = i
18.                 index_j[cnt] = j
19.                 ref2index[i, j - i] = cnt
20.                 cnt += 1
21.     np.save(os.path.join(opt.expDir, 'ref2index_{}{}i{}.npy'.format(opt.cd, opt.dw, opt.si)),ref2index)
22.     index_compress = index_i * L + index_j
23.     compressed_input_tensor = input_tensor[index_compress, ...].reshape(-1, 1, 2, 2)
24.     return compressed_input_tensor

复制代码

作者是通过改变input_tensor来实现这个过程，我们需要取到2维tensor，满意对角线距离条件的所有位置，那这里opt.dw（变量d）对应于我们前面讲解中提到的

，满意条件的将其放入ref2index中，并使得cnt加1，这样我们可以将对角线的位置进行保存。
至于L，是我们前面不停在用的与隔断interval相干的个数，一样平常即是17（4bit采样）。而N是我们前面推理算过的索引的总个数

（各人可以带入diag来盘算N，这样可以跟公式完全对应），至此2维的一个输入tensor就全部对应完毕，送入模型盘算就可以了，这样子把对角线的位置进行了优先保存。
针对于非对角线的位置：看compress_lut_larger_interval函数，实现如下。

2. def compress_lut_larger_interval(opt, input_tensor):
3.     base = torch.arange(0, 257, 2 ** opt.interval)  # 0-256
4.     base[-1] -= 1
5.     L = base.size(0)
6.     input_tensor = input_tensor.reshape(L, L, L, L, 1, 2, 2)
8.     if opt.si==5:
9.         k = 2
10.     elif opt.si==6:
11.         k = 4
12.     elif opt.si==7:
13.         k = 8
14.     else:
15.         raise ValueError
17.     compressed_input_tensor = input_tensor[::k, ::k, ::k, ::k, ...].reshape(-1, 1, 2, 2)
18.     return compressed_input_tensor

复制代码

比力简朴，即选用一个更大的比例，由于我们前面已经使用了4bit来做隔断，那么当opt.si为5时，我们需要对当前的input_tensor做2隔断的采样就可以，之后都是同理可得。
针对于通道：那我们已经讲到了通道是不可以进行压缩的，因此它的input_tensor是不变的，跟之前一样，实现如下，这个过程我们是比力熟悉的，（假如不停有看LUT系列的文章。还不了解的可以关注一下LUT专题哦）：

1. def get_input_tensor(opt):
2.     # 1D input
3.     base = torch.arange(0, 257, 2 ** opt.interval)  # 0-256
4.     base[-1] -= 1
5.     L = base.size(0)
7.     # 2D input
8.     # 256*256   0 0 0...    |1 1 1...     |...|255 255 255...
9.     first = base.cuda().unsqueeze(1).repeat(1, L).reshape(-1)
10.     # 256*256   0 1 2 .. 255|0 1 2 ... 255|...|0 1 2 ... 255
11.     second = base.cuda().repeat(L)
12.     onebytwo = torch.stack([first, second], 1)  # [256*256, 2]
14.     # 3D input
15.     # 256*256*256   0 x65536|1 x65536|...|255 x65536
16.     third = base.cuda().unsqueeze(1).repeat(1, L * L).reshape(-1)
17.     onebytwo = onebytwo.repeat(L, 1)
18.     onebythree = torch.cat(
19.         [third.unsqueeze(1), onebytwo], 1)  # [256*256*256, 3]
21.     # 4D input
22.     fourth = base.cuda().unsqueeze(1).repeat(1, L * L * L).reshape(
23.         -1)  # 256*256*256*256   0 x16777216|1 x16777216|...|255 x16777216
24.     onebythree = onebythree.repeat(L, 1)
25.     # [256*256*256*256, 4]
26.     onebyfourth = torch.cat([fourth.unsqueeze(1), onebythree], 1)
28.     # Rearange input: [N, 4] -> [N, C=1, H=2, W=2]
29.     input_tensor = onebyfourth.unsqueeze(1).unsqueeze(
30.         1).reshape(-1, 1, 2, 2).float() / 255.0
31.     return input_tensor

复制代码

---

3. 微调

微调的部门实在跟MuLUT对比，无明显变革，主要还是看作者如何构建SPF_LUT模型，位置在sr/model.py中，代码如下：

1. class SPF_LUT(nn.Module):
2.     """ PyTorch version of MuLUT for LUT-aware fine-tuning. """
4.     def __init__(self, lut_folder, stages, modes, lutName, upscale, interval, phase=None, **kwargs):
5.         super(SPF_LUT, self).__init__()
6.         self.interval = interval
7.         self.upscale = upscale
8.         self.modes = modes
9.         self.stages = stages
11.         L = 2 ** (8 - interval) + 1
14.         for mode in modes:
15.             # conv1
16.             lut_path = os.path.join(lut_folder, '{}_s{}c0_{}.npy'.format(lutName, 1, mode))
17.             # lut_path = os.path.join(lut_folder, 'LUT_x4_4bit_int8_s{}c0_{}.npy'.format(1, mode))
18.             key = "s{}c0_{}".format(1, mode)
19.             lut_arr = np.load(lut_path).reshape((-1, 2)).astype(np.float32) / 127.0
20.             self.register_parameter(name="weight_" + key, param=torch.nn.Parameter(torch.Tensor(lut_arr)))
22.             # conv2
23.             lut_path = os.path.join(lut_folder, '{}_s{}c0_{}.npy'.format(lutName, 2, mode))
24.             # lut_path = os.path.join(lut_folder, 'LUT_x4_4bit_int8_s{}c0_{}.npy'.format(2, mode))
25.             key = "s{}c0_{}".format(2, mode)
26.             lut_arr = np.load(lut_path).reshape((-1, 2)).astype(np.float32) / 127.0
27.             self.register_parameter(name="weight_" + key, param=torch.nn.Parameter(torch.Tensor(lut_arr)))
29.             # conv3
30.             lut_path = os.path.join(lut_folder, '{}_s{}c0_{}.npy'.format(lutName, 3, mode))
31.             # lut_path = os.path.join(lut_folder, 'LUT_x4_4bit_int8_s{}c0_{}.npy'.format(3, mode))
32.             key = "s{}c0_{}".format(3, mode)
33.             lut_arr = np.load(lut_path).reshape((-1, 2)).astype(np.float32) / 127.0
34.             self.register_parameter(name="weight_" + key, param=torch.nn.Parameter(torch.Tensor(lut_arr)))
36.             # conv4
37.             lut_path = os.path.join(lut_folder, '{}_s{}c0_{}.npy'.format(lutName, 4, mode))
38.             # lut_path = os.path.join(lut_folder, 'LUT_x4_4bit_int8_s{}c0_{}.npy'.format(4, mode))
39.             key = "s{}c0_{}".format(4, mode)
40.             lut_arr = np.load(lut_path).reshape((-1, 1)).astype(np.float32) / 127.0
41.             self.register_parameter(name="weight_" + key, param=torch.nn.Parameter(torch.Tensor(lut_arr)))
43.             for c in range(4):
44.                 # conv6
45.                 lut_path = os.path.join(lut_folder, '{}_s{}c{}_{}.npy'.format(lutName, 6,c, mode))
46.                 # lut_path = os.path.join(lut_folder, 'LUT_x4_4bit_int8_s{}c{}_{}.npy'.format(6,c, mode))
47.                 key = "s{}c{}_{}".format(6,c, mode)
48.                 lut_arr = np.load(lut_path).reshape((-1, self.upscale * self.upscale)).astype(np.float32) / 127.0
49.                 self.register_parameter(name="weight_" + key, param=torch.nn.Parameter(torch.Tensor(lut_arr)))
51.         # conv5
52.         lut_path = os.path.join(lut_folder, '{}_s{}_channel.npy'.format(lutName, 5))
53.         # lut_path = os.path.join(lut_folder, 'LUT_x4_4bit_int8_s{}_channel.npy'.format(5))
54.         key = "s{}_channel".format(5)
55.         lut_arr = np.load(lut_path).reshape((-1, 4)).astype(np.float32) / 127.0
56.         self.register_parameter(name="weight_" + key, param=torch.nn.Parameter(torch.Tensor(lut_arr)))

复制代码

你会发现，实在跟MuLUT一样，将LUT给register成可训练的parameter，这样子去做一个微调。

---

4. 测试

测试的部门由于我们的LUT做了改变，修改为了对角线和非对角线，因此在最后的查表推理的部门需要做一些改变，以对角线做2维压缩为例，在sr/4_test_SPF_LUT_DFC.py中。

1. def InterpTorchBatch_compress_xy(weight, img_in, h, w, interval, rot, d, upscale=4, out_c=1, mode='s',ref2index=None):
2.     q = 2 ** interval  # 16
3.     L = 2 ** (8 - interval) + 1  # 17
5.     diag = 2 * d + 1
6.     N = diag * L + (1 - diag ** 2) // 4
8.     if mode == "s":
9.         img_x = img_in[:, :, 0:0 + h, 0:0 + w]
10.         img_y = img_in[:, :, 0:0 + h, 1:1 + w]
11.         index_flag = (np.abs(img_x - img_y) <= d * q)
13.         # Extract MSBs
14.         img_a1 = img_in[:, :, 0:0 + h, 0:0 + w] // q
15.         img_b1 = img_in[:, :, 0:0 + h, 1:1 + w] // q
16.         img_c1 = img_in[:, :, 1:1 + h, 0:0 + w] // q
17.         img_d1 = img_in[:, :, 1:1 + h, 1:1 + w] // q
19.         # Extract LSBs
20.         fa = img_in[:, :, 0:0 + h, 0:0 + w] % q
21.         fb = img_in[:, :, 0:0 + h, 1:1 + w] % q
22.         fc = img_in[:, :, 1:1 + h, 0:0 + w] % q
23.         fd = img_in[:, :, 1:1 + h, 1:1 + w] % q
25.     elif mode == 'd':
26.         img_x = img_in[:, :, 0:0 + h, 0:0 + w]
27.         img_y = img_in[:, :, 0:0 + h, 2:2 + w]
28.         index_flag = (np.abs(img_x - img_y) <= d * q)
30.         img_a1 = img_in[:, :, 0:0 + h, 0:0 + w] // q
31.         img_b1 = img_in[:, :, 0:0 + h, 2:2 + w] // q
32.         img_c1 = img_in[:, :, 2:2 + h, 0:0 + w] // q
33.         img_d1 = img_in[:, :, 2:2 + h, 2:2 + w] // q
35.         fa = img_in[:, :, 0:0 + h, 0:0 + w] % q
36.         fb = img_in[:, :, 0:0 + h, 2:2 + w] % q
37.         fc = img_in[:, :, 2:2 + h, 0:0 + w] % q
38.         fd = img_in[:, :, 2:2 + h, 2:2 + w] % q
40.     elif mode == 'y':
41.         img_x = img_in[:, :, 0:0 + h, 0:0 + w]
42.         img_y = img_in[:, :, 1:1 + h, 1:1 + w]
43.         index_flag = (np.abs(img_x - img_y) <= d * q)
45.         img_a1 = img_in[:, :, 0:0 + h, 0:0 + w] // q
46.         img_b1 = img_in[:, :, 1:1 + h, 1:1 + w] // q
47.         img_c1 = img_in[:, :, 1:1 + h, 2:2 + w] // q
48.         img_d1 = img_in[:, :, 2:2 + h, 1:1 + w] // q
50.         fa = img_in[:, :, 0:0 + h, 0:0 + w] % q
51.         fb = img_in[:, :, 1:1 + h, 1:1 + w] % q
52.         fc = img_in[:, :, 1:1 + h, 2:2 + w] % q
53.         fd = img_in[:, :, 2:2 + h, 1:1 + w] % q
54.     else:
55.         # more sampling modes can be implemented similarly
56.         raise ValueError("Mode {} not implemented.".format(mode))
58.     img_a1 = img_a1[index_flag].flatten().astype(np.int_)
59.     img_b1 = img_b1[index_flag].flatten().astype(np.int_)
60.     img_c1 = img_c1[index_flag].flatten().astype(np.int_)
61.     img_d1 = img_d1[index_flag].flatten().astype(np.int_)
63.     fa = fa[index_flag].flatten()
64.     fb = fb[index_flag].flatten()
65.     fc = fc[index_flag].flatten()
66.     fd = fd[index_flag].flatten()
68.     img_a2 = img_a1 + 1
69.     img_b2 = img_b1 + 1
70.     img_c2 = img_c1 + 1
71.     img_d2 = img_d1 + 1
73.     k00 = ref2index[img_a1, img_b1 - img_a1]
74.     k01 = ref2index[img_a1, img_b2 - img_a1]
75.     k10 = ref2index[img_a2, img_b1 - img_a2]
76.     k11 = ref2index[img_a2, img_b2 - img_a2]
78.     p0000 = weight[k00,img_c1, img_d1].reshape((-1, out_c,upscale,upscale))
79.     p0001 = weight[k00,img_c1, img_d2].reshape((-1, out_c,upscale,upscale))
80.     p0010 = weight[k00,img_c2, img_d1].reshape((-1, out_c,upscale,upscale))
81.     p0011 = weight[k00,img_c2, img_d2].reshape((-1, out_c,upscale,upscale))
82.     p0100 = weight[k01,img_c1, img_d1].reshape((-1, out_c,upscale,upscale))
83.     p0101 = weight[k01,img_c1, img_d2].reshape((-1, out_c,upscale,upscale))
84.     p0110 = weight[k01,img_c2, img_d1].reshape((-1, out_c,upscale,upscale))
85.     p0111 = weight[k01,img_c2, img_d2].reshape((-1, out_c,upscale,upscale))
87.     p1000 = weight[k10,img_c1, img_d1].reshape((-1, out_c,upscale,upscale))
88.     p1001 = weight[k10,img_c1, img_d2].reshape((-1, out_c,upscale,upscale))
89.     p1010 = weight[k10,img_c2, img_d1].reshape((-1, out_c,upscale,upscale))
90.     p1011 = weight[k10,img_c2, img_d2].reshape((-1, out_c,upscale,upscale))
91.     p1100 = weight[k11,img_c1, img_d1].reshape((-1, out_c,upscale,upscale))
92.     p1101 = weight[k11,img_c1, img_d2].reshape((-1, out_c,upscale,upscale))
93.     p1110 = weight[k11,img_c2, img_d1].reshape((-1, out_c,upscale,upscale))
94.     p1111 = weight[k11,img_c2, img_d2].reshape((-1, out_c,upscale,upscale))
96.     # Output image holder
97.     out = np.zeros((img_a1.shape[0],out_c, upscale, upscale))
98.     sz = img_a1.shape[0]
99.     out = out.reshape(sz, -1)
101.     p0000 = p0000.reshape(sz, -1)
102.     p0100 = p0100.reshape(sz, -1)
103.     p1000 = p1000.reshape(sz, -1)
104.     p1100 = p1100.reshape(sz, -1)
105.     fa = fa.reshape(-1, 1)
107.     p0001 = p0001.reshape(sz, -1)
108.     p0101 = p0101.reshape(sz, -1)
109.     p1001 = p1001.reshape(sz, -1)
110.     p1101 = p1101.reshape(sz, -1)
111.     fb = fb.reshape(-1, 1)
112.     fc = fc.reshape(-1, 1)
114.     p0010 = p0010.reshape(sz, -1)
115.     p0110 = p0110.reshape(sz, -1)
116.     p1010 = p1010.reshape(sz, -1)
117.     p1110 = p1110.reshape(sz, -1)
118.     fd = fd.reshape(-1, 1)
120.     p0011 = p0011.reshape(sz, -1)
121.     p0111 = p0111.reshape(sz, -1)
122.     p1011 = p1011.reshape(sz, -1)
123.     p1111 = p1111.reshape(sz, -1)
125.     fab = fa > fb;
126.     fac = fa > fc;
127.     fad = fa > fd
129.     fbc = fb > fc;
130.     fbd = fb > fd;
131.     fcd = fc > fd
133.     i1 = i = np.logical_and.reduce((fab, fbc, fcd)).squeeze(1)
134.     # print(p0000[i].shape,fa[i].shape,i.shape,out_c)
135.     out[i] = (q - fa[i]) * p0000[i] + (fa[i] - fb[i]) * p1000[i] + (fb[i] - fc[i]) * p1100[i] + (fc[i] - fd[i]) * p1110[
136.         i] + (fd[i]) * p1111[i]
137.     i2 = i = np.logical_and.reduce((~i1[:, None], fab, fbc, fbd)).squeeze(1)
138.     out[i] = (q - fa[i]) * p0000[i] + (fa[i] - fb[i]) * p1000[i] + (fb[i] - fd[i]) * p1100[i] + (fd[i] - fc[i]) * p1101[
139.         i] + (fc[i]) * p1111[i]
140.     i3 = i = np.logical_and.reduce((~i1[:, None], ~i2[:, None], fab, fbc, fad)).squeeze(1)
141.     out[i] = (q - fa[i]) * p0000[i] + (fa[i] - fd[i]) * p1000[i] + (fd[i] - fb[i]) * p1001[i] + (fb[i] - fc[i]) * p1101[
142.         i] + (fc[i]) * p1111[i]
143.     i4 = i = np.logical_and.reduce((~i1[:, None], ~i2[:, None], ~i3[:, None], fab, fbc)).squeeze(1)
145.     out[i] = (q - fd[i]) * p0000[i] + (fd[i] - fa[i]) * p0001[i] + (fa[i] - fb[i]) * p1001[i] + (fb[i] - fc[i]) * p1101[
146.         i] + (fc[i]) * p1111[i]
148.     i5 = i = np.logical_and.reduce((~(fbc), fab, fac, fbd)).squeeze(1)
149.     out[i] = (q - fa[i]) * p0000[i] + (fa[i] - fc[i]) * p1000[i] + (fc[i] - fb[i]) * p1010[i] + (fb[i] - fd[i]) * p1110[
150.         i] + (fd[i]) * p1111[i]
151.     i6 = i = np.logical_and.reduce((~(fbc), ~i5[:, None], fab, fac, fcd)).squeeze(1)
152.     out[i] = (q - fa[i]) * p0000[i] + (fa[i] - fc[i]) * p1000[i] + (fc[i] - fd[i]) * p1010[i] + (fd[i] - fb[i]) * p1011[
153.         i] + (fb[i]) * p1111[i]
154.     i7 = i = np.logical_and.reduce((~(fbc), ~i5[:, None], ~i6[:, None], fab, fac, fad)).squeeze(1)
155.     out[i] = (q - fa[i]) * p0000[i] + (fa[i] - fd[i]) * p1000[i] + (fd[i] - fc[i]) * p1001[i] + (fc[i] - fb[i]) * p1011[
156.         i] + (fb[i]) * p1111[i]
157.     i8 = i = np.logical_and.reduce((~(fbc), ~i5[:, None], ~i6[:, None], ~i7[:, None], fab, fac)).squeeze(1)
158.     out[i] = (q - fd[i]) * p0000[i] + (fd[i] - fa[i]) * p0001[i] + (fa[i] - fc[i]) * p1001[i] + (fc[i] - fb[i]) * p1011[
159.         i] + (fb[i]) * p1111[i]
161.     i9 = i = np.logical_and.reduce((~(fbc), ~(fac), fab, fbd)).squeeze(1)
162.     out[i] = (q - fc[i]) * p0000[i] + (fc[i] - fa[i]) * p0010[i] + (fa[i] - fb[i]) * p1010[i] + (fb[i] - fd[i]) * p1110[
163.         i] + (fd[i]) * p1111[i]
164.     # Fix the overflow bug in SR-LUT's implementation, should compare fd with fa first!
165.     # i10 = i = np.logical_and.reduce((~(fbc), ~(fac), ~i9[:,None], fab, fcd)).squeeze(1)
166.     # out[i] = (q-fc[i]) * p0000[i] + (fc[i]-fa[i]) * p0010[i] + (fa[i]-fd[i]) * p1010[i] + (fd[i]-fb[i]) * p1011[i] + (fb[i]) * p1111[i]
167.     # i11 = i = np.logical_and.reduce((~(fbc), ~(fac), ~i9[:,None], ~i10[:,None], fab, fad)).squeeze(1)
168.     # out[i] = (q-fc[i]) * p0000[i] + (fc[i]-fd[i]) * p0010[i] + (fd[i]-fa[i]) * p0011[i] + (fa[i]-fb[i]) * p1011[i] + (fb[i]) * p1111[i]
169.     i10 = i = np.logical_and.reduce((~(fbc), ~(fac), ~i9[:, None], fab, fad)).squeeze(1)  # c > a > d > b
170.     out[i] = (q - fc[i]) * p0000[i] + (fc[i] - fa[i]) * p0010[i] + (fa[i] - fd[i]) * p1010[i] + (fd[i] - fb[i]) * p1011[
171.         i] + (fb[i]) * p1111[i]
172.     i11 = i = np.logical_and.reduce((~(fbc), ~(fac), ~i9[:, None], ~i10[:, None], fab, fcd)).squeeze(1)  # c > d > a > b
173.     out[i] = (q - fc[i]) * p0000[i] + (fc[i] - fd[i]) * p0010[i] + (fd[i] - fa[i]) * p0011[i] + (fa[i] - fb[i]) * p1011[
174.         i] + (fb[i]) * p1111[i]
175.     i12 = i = np.logical_and.reduce((~(fbc), ~(fac), ~i9[:, None], ~i10[:, None], ~i11[:, None], fab)).squeeze(1)
176.     out[i] = (q - fd[i]) * p0000[i] + (fd[i] - fc[i]) * p0001[i] + (fc[i] - fa[i]) * p0011[i] + (fa[i] - fb[i]) * p1011[
177.         i] + (fb[i]) * p1111[i]
179.     i13 = i = np.logical_and.reduce((~(fab), fac, fcd)).squeeze(1)
180.     out[i] = (q - fb[i]) * p0000[i] + (fb[i] - fa[i]) * p0100[i] + (fa[i] - fc[i]) * p1100[i] + (fc[i] - fd[i]) * p1110[
181.         i] + (fd[i]) * p1111[i]
182.     i14 = i = np.logical_and.reduce((~(fab), ~i13[:, None], fac, fad)).squeeze(1)
183.     out[i] = (q - fb[i]) * p0000[i] + (fb[i] - fa[i]) * p0100[i] + (fa[i] - fd[i]) * p1100[i] + (fd[i] - fc[i]) * p1101[
184.         i] + (fc[i]) * p1111[i]
185.     i15 = i = np.logical_and.reduce((~(fab), ~i13[:, None], ~i14[:, None], fac, fbd)).squeeze(1)
186.     out[i] = (q - fb[i]) * p0000[i] + (fb[i] - fd[i]) * p0100[i] + (fd[i] - fa[i]) * p0101[i] + (fa[i] - fc[i]) * p1101[
187.         i] + (fc[i]) * p1111[i]
188.     i16 = i = np.logical_and.reduce((~(fab), ~i13[:, None], ~i14[:, None], ~i15[:, None], fac)).squeeze(1)
189.     out[i] = (q - fd[i]) * p0000[i] + (fd[i] - fb[i]) * p0001[i] + (fb[i] - fa[i]) * p0101[i] + (fa[i] - fc[i]) * p1101[
190.         i] + (fc[i]) * p1111[i]
192.     i17 = i = np.logical_and.reduce((~(fab), ~(fac), fbc, fad)).squeeze(1)
193.     out[i] = (q - fb[i]) * p0000[i] + (fb[i] - fc[i]) * p0100[i] + (fc[i] - fa[i]) * p0110[i] + (fa[i] - fd[i]) * p1110[
194.         i] + (fd[i]) * p1111[i]
195.     i18 = i = np.logical_and.reduce((~(fab), ~(fac), ~i17[:, None], fbc, fcd)).squeeze(1)
196.     out[i] = (q - fb[i]) * p0000[i] + (fb[i] - fc[i]) * p0100[i] + (fc[i] - fd[i]) * p0110[i] + (fd[i] - fa[i]) * p0111[
197.         i] + (fa[i]) * p1111[i]
198.     i19 = i = np.logical_and.reduce((~(fab), ~(fac), ~i17[:, None], ~i18[:, None], fbc, fbd)).squeeze(1)
199.     out[i] = (q - fb[i]) * p0000[i] + (fb[i] - fd[i]) * p0100[i] + (fd[i] - fc[i]) * p0101[i] + (fc[i] - fa[i]) * p0111[
200.         i] + (fa[i]) * p1111[i]
201.     i20 = i = np.logical_and.reduce((~(fab), ~(fac), ~i17[:, None], ~i18[:, None], ~i19[:, None], fbc)).squeeze(1)
202.     out[i] = (q - fd[i]) * p0000[i] + (fd[i] - fb[i]) * p0001[i] + (fb[i] - fc[i]) * p0101[i] + (fc[i] - fa[i]) * p0111[
203.         i] + (fa[i]) * p1111[i]
205.     i21 = i = np.logical_and.reduce((~(fab), ~(fac), ~(fbc), fad)).squeeze(1)
206.     out[i] = (q - fc[i]) * p0000[i] + (fc[i] - fb[i]) * p0010[i] + (fb[i] - fa[i]) * p0110[i] + (fa[i] - fd[i]) * p1110[
207.         i] + (fd[i]) * p1111[i]
208.     i22 = i = np.logical_and.reduce((~(fab), ~(fac), ~(fbc), ~i21[:, None], fbd)).squeeze(1)
209.     out[i] = (q - fc[i]) * p0000[i] + (fc[i] - fb[i]) * p0010[i] + (fb[i] - fd[i]) * p0110[i] + (fd[i] - fa[i]) * p0111[
210.         i] + (fa[i]) * p1111[i]
211.     i23 = i = np.logical_and.reduce((~(fab), ~(fac), ~(fbc), ~i21[:, None], ~i22[:, None], fcd)).squeeze(1)
212.     out[i] = (q - fc[i]) * p0000[i] + (fc[i] - fd[i]) * p0010[i] + (fd[i] - fb[i]) * p0011[i] + (fb[i] - fa[i]) * p0111[
213.         i] + (fa[i]) * p1111[i]
214.     i24 = i = np.logical_and.reduce((~(fab), ~(fac), ~(fbc), ~i21[:, None], ~i22[:, None], ~i23[:, None])).squeeze(1)
215.     out[i] = (q - fd[i]) * p0000[i] + (fd[i] - fc[i]) * p0001[i] + (fc[i] - fb[i]) * p0011[i] + (fb[i] - fa[i]) * p0111[
216.         i] + (fa[i]) * p1111[i]
218.     out = out / q
219.     return out,index_flag

复制代码

可以看到查表之前，需要盘算一个index_flag，index_flag的定义即是否满意对角线条件，假如满意对角线条件就是通过对角线LUT去查表，否则我们是采取非对角线的LUT去查表，详细的逻辑各人可以去捋一捋，博主认为实际运行也很少会使用python去跑。

---

以上针对于SPFLUT代码实现的部门讲解完毕，假如有不清晰的题目欢迎各人提出。

免责声明：如果侵犯了您的权益，请联系站长，我们会及时删除侵权内容，谢谢合作！更多信息从访问主页：qidao123.com:ToB企服之家，中国第一个企服评测及商务社交产业平台。

继续阅读请点击广告
