神州数码--制作wifi

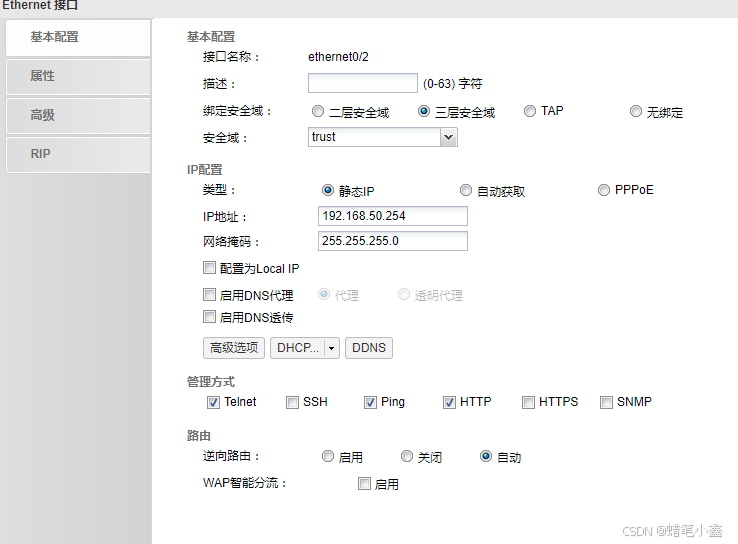

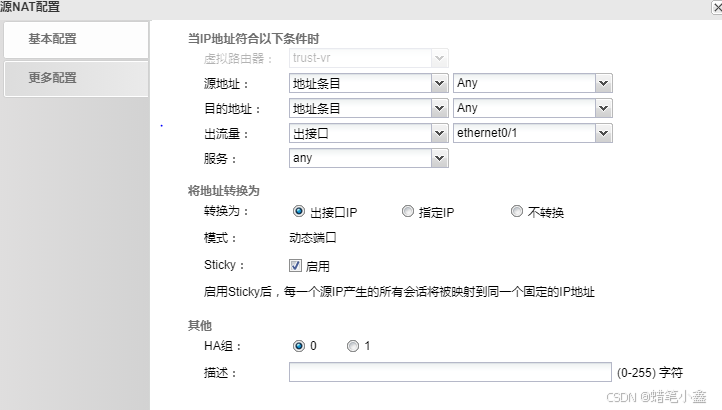

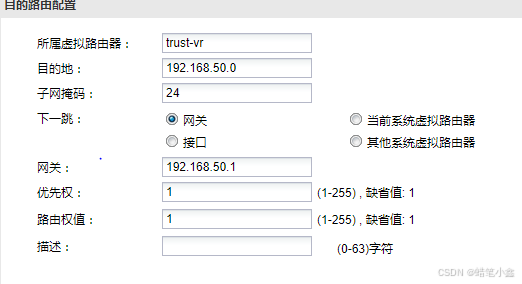

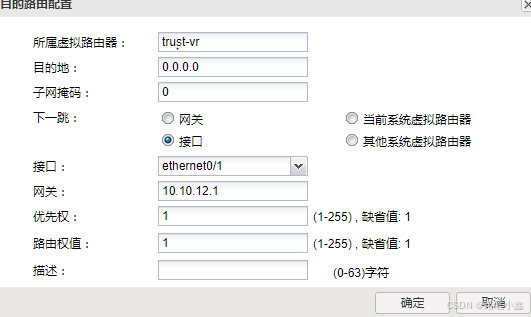

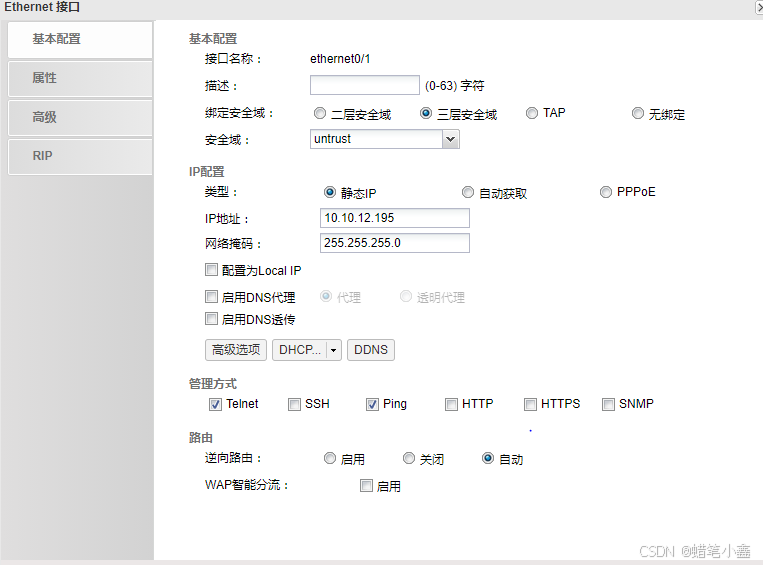

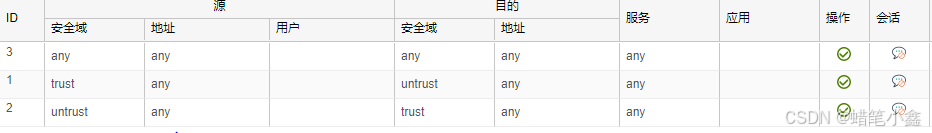

防火墙:

2. #ip vrouter trust-vr
4. #router ospf 1
6. #router-id 8.8.8.8
8. #network 10.0.0.0/30 area 0.0.0.0
10. #network 10.0.0.4/30 area 0.0.0.0
12. #network 10.0.0.8/30 area 0.0.0.0

复制代码

交换机：

2. #vlan 10;50
4. #ip add 192.168.10.1 255.255.255.0
6. #int vlan 50
8. #ip add 192.168.50.1 255.255.255.0
10. #int e1/0/1-23
12. #switchport access vlan 50
14. #ip route 0.0.0.0/0 192.168.50.254
16. #sntp server 202.118.1.81
18. #username admin privilege 15 password 0 admin
20. #clock timezone gmt add 8 0
22. #service dhcp
24. #ip dhcp excluded-address 192.168.50.1
26. #ip dhcp excluded-address 192.168.50.254
28. #ip dhcp pool 50
30. #network-address 192.168.50.0 255.255.255.0
32. #lease 8 0 0
34. #default-router 192.168.50.1
36. #dns-server 218.104.111.114
38. #write

复制代码

无线控制器：

2. # vlan 1;50
4. #int vlan 1
6. #ip add 192.168.10.1 255.255.255.0
8. #int vlan 50
10. # ip add 192.168.50.3 255.255.255.0
12. #int e1/0/1
14. #switchport mode trunk
16. #switchport trunk native vlan 1
18. #int e1/0/2
20. #switchport mode trunk
22. #switchport trunk native vlan 50
24. #ip route 0.0.0.0/0 192.168.50.1
26. #sntp server 203.107.6.88
28. # show ip dhcp binding
30. #wireless
32. #no auto-ip-assign
34. #enable
36. #ap authentication none
38. #static-ip 192.168.10.1
40. #network 1
42. #security mode wpa-personal
44. #ssid PPP-5G
46. #vlan 50
48. #wpa key 123456789
50. #ap profile 1
52. #radio 1
54. #network 1
56. #vap 0
58. #enable
60. #ap dtabase 00-03-0f-8c-65-10
62. #wireless ap profile apply 1

复制代码
