STM32移植嵌入式开源按键框架

目次
STM32移植嵌入式开源按键框架
MultiButton简介
multi_button.c文件
multi_button.h文件
按键变乱
案例利用方法
学习分析

---

STM32移植嵌入式开源按键框架

   本日移植了一款嵌入式按键框架工程MultiButton，MultiButton是一个小巧简朴易用的变乱驱动型按键驱动模块。
  Github地点：GitHub - 0x1abin/MultiButton: Button driver for embedded system

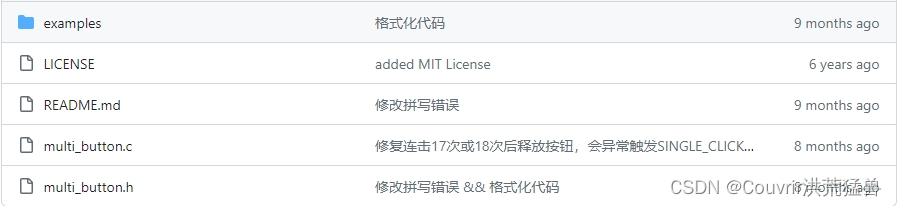

  现于2024.04.15举行移植，详细就两个文件：multi_button的c文件和h文件。

MultiButton简介

   MultiButton 是一个小巧简朴易用的变乱驱动型按键驱动模块，可无穷量扩展按键，按键变乱的回调异步处置惩罚方式可以简化你的步调布局，去除冗余的按键处置惩罚硬编码，让你的按键业务逻辑更清楚。

multi_button.c文件

   把license内容放到代码首段。

1. /*
2. * MIT License
4. * Copyright (c) 2018 Zibin Zheng
5. *
6. * Permission is hereby granted, free of charge, to any person obtaining a copy
7. * of this software and associated documentation files (the "Software"), to deal
8. * in the Software without restriction, including without limitation the rights
9. * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
10. * copies of the Software, and to permit persons to whom the Software is
11. * furnished to do so, subject to the following conditions:
12. *
13. * The above copyright notice and this permission notice shall be included in all
14. * copies or substantial portions of the Software.
15. *
16. * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
17. * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
18. * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
19. * AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
20. * LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
21. * OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
22. * SOFTWARE.
23. */
25. /* github:https://github.com/0x1abin/MultiButton */
27. #include "driver_button.h"
29. #define EVENT_CB(ev)   if(handle->cb[ev])handle->cb[ev]((void*)handle)
30. #define PRESS_REPEAT_MAX_NUM  15 /*!< The maximum value of the repeat counter */
32. //button handle list head.
33. static struct Button* head_handle = NULL;
35. static void button_handler(struct Button* handle);
37. /**
38.   * @brief  Initializes the button struct handle.
39.   * @param  handle: the button handle struct.
40.   * @param  pin_level: read the HAL GPIO of the connected button level.
41.   * @param  active_level: pressed GPIO level.
42.   * @param  button_id: the button id.
43.   * @retval None
44.   */
45. void button_init(struct Button* handle, uint8_t(*pin_level)(uint8_t), uint8_t active_level, uint8_t

复制代码
